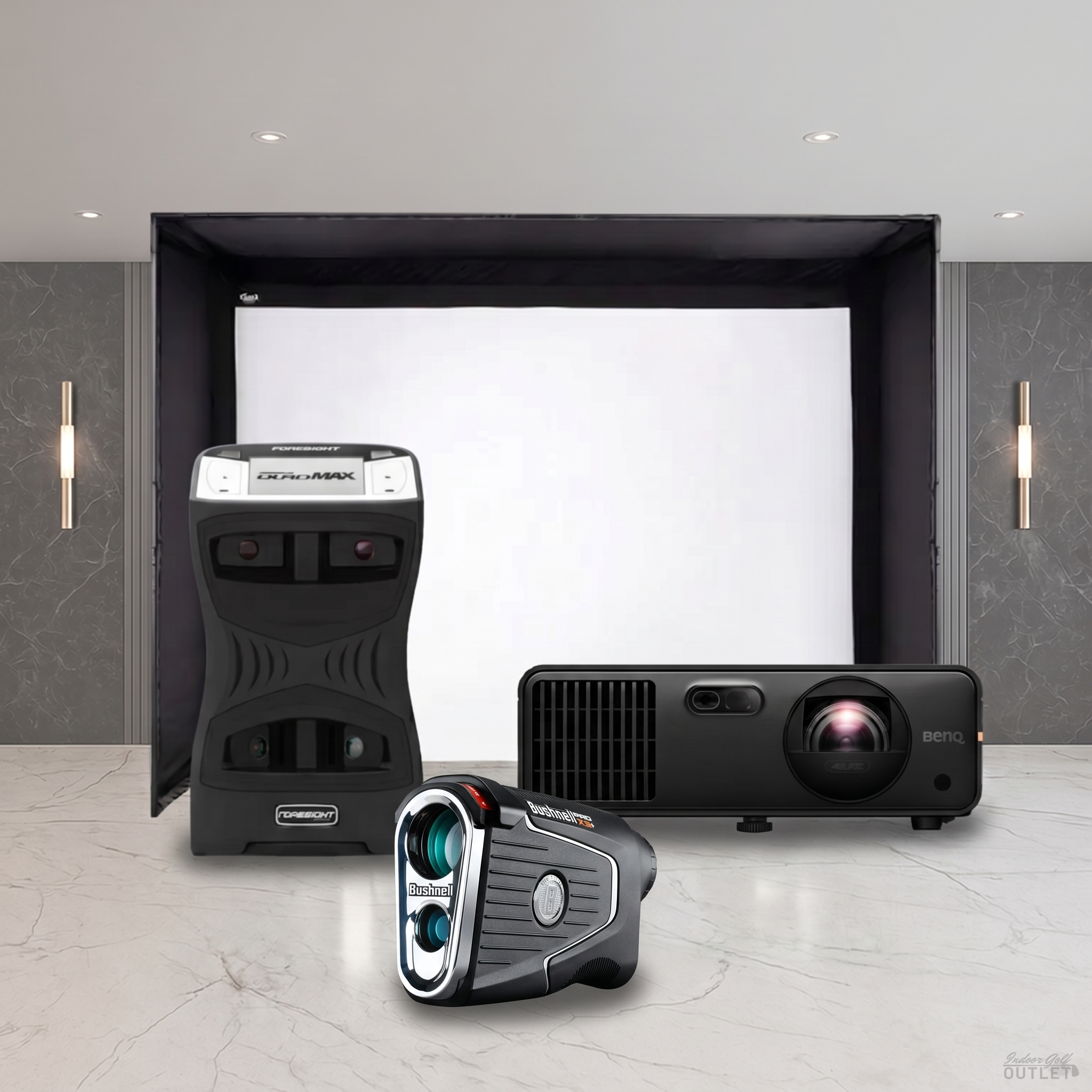

Foresight Sports QuadMAX Carl's Place DIY Golf Simulator Package is the ultimate solution for customizability and affordability in a golf simulator package. The package includes the Foresight Sports QuadMAX Launch Monitor, Carl's Place C-Series DIY Golf Simulator Enclosure Kit with choice of Premium or High-Contrast Gray Impact Screen in your preferred size, and your choice from BenQ, LG, Epson, or Optoma projector.
The QuadMAX builds on the proven four-camera photometric technology of the GCQuad while introducing advanced features such as a touchscreen display, customizable MyTiles software, and massive shot storage capacity. With added data points like ball apex, descent angle, and offline distance, plus the ability to measure swing speed without hitting a ball, the QuadMAX sets a new standard for professional performance training.
Software is delivered through a Foresight+ membership, and every new launch monitor includes 30 days of Foresight+ Gold Membership with Course Pass Pro.
What's Included:
- Foresight Sports QuadMAX Launch Monitor
- 30 Days of Foresight+ Gold Membership with Course Pass Pro
- Bushnell Pro X3+LINK Laser Rangefinder
- Carl's Place C-Series DIY Golf Simulator Enclosure Kit with choice of Premium or High-Contrast Gray Impact Screen
- choice from BenQ, LG, Epson, or Optoma projectors
Optional Accessories (Not Included):
- Pipe Framing Kit for DIY Golf Simulator Enclosure (Recommended)
- Foam Insert Kit (Recommended)
- Safety Baffle
(Recommended)
- Back Cover Kit for DIY Golf Simulator Enclosure
- Back Cover Pipe Kit
for DIY Golf Simulator Enclosure
- Net Wall Extensions for Golf Simulator Enclosure
- Hitting Mat
- Putting Turf
- Projector Mount
- Gaming PC or Laptop
Features
New Features Included with the QuadMAX
- Touchscreen Display: Offers improved usability and faster navigation.
- Speed Training: Measures swing speed without needing to strike a ball, using a speed training aid with a reflective marker or any golf club.
- MyTiles: Customizes and prioritizes the on-screen data you wish to view.
- Internal Session Capture: Records shot and session data on the QuadMAX’s internal memory, with the capacity to store up to two billion shots.
- Additional On-Device Data Parameters: Provides information on ball apex, descent angle, and ball offline from the target.
- Larger Battery: Features a 15% larger battery for extended battery life.
- Decreased Weight: 15% lighter due to magnesium internals, enhancing portability.
- New Ergonomic Handle: Improves carry ease and overall portability.
NFC Compatible
Connecting your QuadMAX to the Foresight App is now simpler than ever with NFC capability. Just hold your phone up to the QuadMAX screen to pair the devices. This seamless connection lets you access your data, customize your MyTiles, and more, all directly from your phone.
All the Data You Need to Analyze Your Game
QuadMAX includes ball and club head analysis as a standard feature with no need for additional hardware or subscriptions. Benefit from newly added data points including ball apex, ball descent angle, and ball offline. Additionally, the newly added Swing Speed Training allows you to measure swing speed without having to strike a ball.
Software & Course Play
Every new Foresight launch monitor includes 30 days of Foresight+ Gold Membership with Course Pass Pro, which gives you full Gold-tier features plus the full premium library of 111 courses for the first 30 days. Your Foresight+ membership powers Foresight Premier (the all-new PC simulation software) in the sim and the Foresight app on the range, all on one account.
| Foresight+ Membership |
Free |
Silver
$199/yr |
Gold
$599/yr |
| Core data views (app + Foresight Premier) |
Yes |
Yes |
Yes |
| Session history |
10 sessions |
Unlimited |
Unlimited |
| Dispersion, Tags & Zones |
- |
Yes |
Yes |
| Drills & Challenges |
- |
Yes |
Yes |
| Course Pass eligible |
- |
Yes |
Yes |
| Swing video capture |
- |
- |
Yes |
| Multiple profiles & club comparison |
- |
- |
Yes |
| 3rd-party integrations |
- |
- |
Yes |
Course Play: your 30-day trial includes Course Pass Pro (the full 111-course library). To keep playing courses after the trial you will need a Silver or Gold membership plus a course pass: Course Pass ($295/yr, 35 courses) or Course Pass Pro ($595/yr, full 111-course library).
What's Included
Included with Your Purchase:
- Foresight Sports QuadMAX Launch Monitor
- 30 Days of Foresight+ Gold Membership with Course Pass Pro
- Bushnell Pro X3+LINK Laser Rangefinder
- Carl's Place C-Series DIY Golf Simulator Enclosure Kit with choice of Premium or High-Contrast Gray Impact Screen
- choice from BenQ, LG, Epson, or Optoma projectors
Optional Accessories (Not Included):
- Pipe Framing Kit for DIY Golf Simulator Enclosure (Recommended)
- Foam Insert Kit (Recommended)
- Safety Baffle
(Recommended)
- Back Cover Kit for DIY Golf Simulator Enclosure
- Back Cover Pipe Kit
for DIY Golf Simulator Enclosure
- Net Wall Extensions for Golf Simulator Enclosure
- Hitting Mat
- Putting Turf
- Projector Mount
- Gaming PC or Laptop
What's Measured
Ball Data Measured:
- Launch Angle
- Side Angle
- Ball Speed
- Total Spin
- Carry
- Side Spin/Spin Axis
- Apex
- Descent Angle
- Offline from Target
Club Data Measured:
- Club Head Speed
- Smash Factor
- Club Path
- Angle of Attack
- Loft/Lie
- Face Angle
- Impact Location
- Closure Rate
Putting Data Measured:
- Ball Velocity
- Vertical Launch Angle
- Horizontal Launch Direction
- Launch Spin
- Club Speed
- Smash Factor
-
*Club Path
-
*Angle of Attack
-
*Impact Face Angle
-
*Impact Lie Angle
-
*Impact Location
- Skid Distance
- Time to Full Roll
- Roll Spin (RPM's at True Roll)
Please Note: Data metrics marked with an asterisk (*) require Clubhead Measurement to be enabled.
Specifications
QuadMAX Launch Monitor Specifications:
- Technology: Quadrascopic High-Speed Camera System
- Dimensions: 12.5" (H) x 7" (W) x 4" (D)
- Weight: 6.3 lbs / 2.86 kg
Carl's Place C-Series DIY Enclosure Specifications:
- Depths: Available in 5' standard depth. The enclosure frame's footprint extends ~1 ft behind the screen.
- EMT Requirements: Unless you have purchased the Pipe Framing Kit accessory, you will need to purchase 1-inch EMT (electrical metal tubing) from your local hardware store to complete your frame. Please note, 1-inch EMT is the US trade name of the material, however the true outer diameter is 1.163" or 27mm.
Requirements
Foresight Premier Minimum Requirements (1080p, Low Graphics):
- Operating System: Windows 10 or 11 (Premier is a Windows PC application; no Mac version)
- Processor: Intel i5-12500 or better
- Graphics Card: NVIDIA RTX 4060 with 8GB VRAM or better
- Memory/RAM: 16GB
- Storage: SSD with 50GB available (room for approximately 20 courses)
Foresight Premier Recommended Requirements:
- Operating System: Windows 11
- Memory/RAM: 32GB
- Storage: 1TB SSD (room for the full course library)
- 1080p, Medium Graphics: Intel Core Ultra 7 with NVIDIA RTX 5070 (12GB VRAM) or better
- 1080p, High Graphics: Intel Core Ultra 7 with NVIDIA RTX 5070 Ti (16GB VRAM) or better
- 4K: Intel Core Ultra 9 with NVIDIA RTX 5080 (16GB VRAM) or better
FAQ
Q: What is included with the Foresight QuadMAX Carl's Place DIY Golf Simulator Package?
A: Foresight QuadMAX Launch Monitor, Carl's Place C-Series DIY Golf Simulator Enclosure Kit with choice of Premium or High-Contrast Gray Impact Screen, and your choice from BenQ, LG, Epson, or Optoma projectors.
Q: How far away should I stand from my impact screen?
A: For the safety of both the golfer and the screen, we recommend standing a minimum of 10-12 feet away from the screen.
Q: How much buffer space do I need around my enclosure?
A: For Carl's Place DIY Enclosure Kits, we recommend you give yourself an absolute minimum of 2-3 inches buffer space from the height you have available. For width, subtract 4-6 inches from your available space to allow 2-3 inches of clearance on each side. Keep in mind that C-Series enclosures include a rear backset fitting that adds 8.25 inches to the depth, creating a built-in buffer for safety.
Q: How much space do I need for the enclosure?A: When planning your simulator space, consider several factors including buffer space around walls and ceilings, enclosure footprint, launch monitor requirements, safe golfer distance (10-12 feet from the screen), golfer height, club length, turf thickness, and any nearby furniture or doorways.
Q: What if the black enclosure material gets hit with a golf ball?A: The black enclosure material isn’t designed to take direct hits, but if a ball bounces off the impact screen and hits the enclosure, you should not experience any issues.
Q: What pipes do I need to construct the enclosure kit frame?A: DIY Enclosures require 1-inch EMT (Electrical Metal Tubing). You can either add a pre-cut
Pipe Framing Kit for DIY Golf Simulator Enclosure to your order or source EMT locally.
Q: How long does it take to assemble the enclosure?A: Assembly time for DIY Golf Simulator Enclosure Kits is about an hour, depending on size and whether you have a helper. For guidance, refer to our assembly video and manual.
Q: Where and how should I mount my projector?A: Projector placement depends on your viewable screen dimensions and the throw ratio of your projector. Feel free to reach out to our team so we can provide you with the exact mounting location based upon the enclosure size and projector that you choose. Common mounting options include flush or drop mounts.
