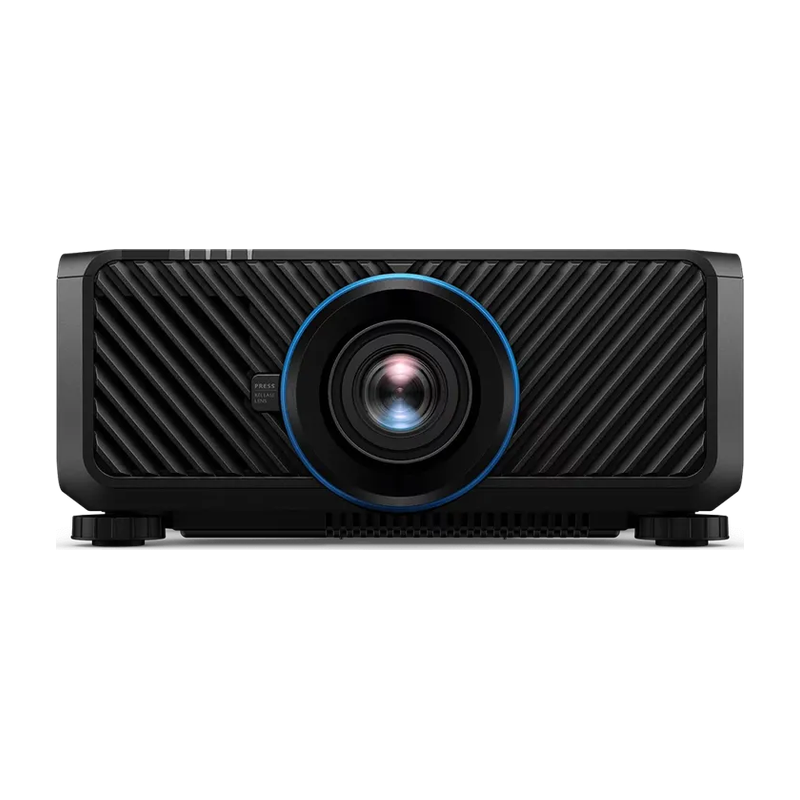

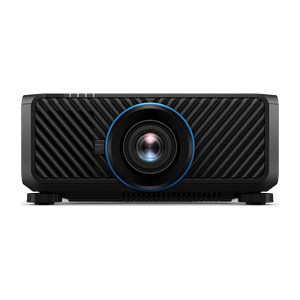

BenQ LU9800 10000lms WUXGA Large-Venue Projector

Superb Image Quality
Revolutionary laser technology ensures brilliant color reproduction and exceptional detail.

DLP Technology
BenQ laser projectors use a reliable 1-chip DLP design with a durable chip rated for 100,000+ hours, delivering vivid colors and sharp text.


Dual Color Wheels
BenQ engineers enhanced laser projectors with dual color wheels, achieving precise RGBY color by removing the white segment of traditional color wheels.

Ultra-High Contrast with Automatic Power Control
BenQ laser projectors directly control light output for faster response and strikingly clear images at a super-high contrast ratio of 3,000,000:1.

Enhanced WUXGA Resolution
With an impressive WUXGA (1920 x 1200) native resolution that far exceeds Full HD 1080p.

Factory White Balance Calibration
BenQ's exclusive white balance adjustments minimize differences between projectors, ensuring seamless picture quality and saving time during installation.

Custom Light Mode
Custom Light Mode adjusts light output from 40% to 100% in 80 steps, ensuring optimal image quality and consistent brightness for multiple projections.

Included with Your Purchase:

• Remote Control w/ Battery (RCA025)
• Power Cord (by region)
• User Manual CD
• Installation Guide
• Warranty Card (by region)
• Lens Cover

Display:

• Brightness (ANSI lumens): 10000
• Resolution: WUXGA (1920x1200)
• Native Aspect Ratio: 16:10
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: a. Normal 20000 hrs, b. ECO 38000 hrs, d. Dimming 70000 hrs



Optical:

• Throw Ratio (Optional Lens):
  Ultra Short Throw: 0.38 LS1ST3A
  Short Throw: 0.77-1.1 LS1ST2A
  Wide Zoom 2: 1.1-1.3 LS1ST1A
  Wide Zoom 1: 1.25-1.6 LS1SDA
  Standard: 1.54-1.93 LS1LT0
  Semi Long: 1.93-2.9 LS1LT1
  Semi Long 1: 2.22-3.67 LS1LT2
  Long Zoom 1: 3.58-5.38 LS1LT3
  Long Zoom 2: 5.31~8.26


• Zoom Ratio (Optional Lens):
  Long Zoom 1: 1.5x
  Long Zoom 2: 1.67x
  Semi Long: 1.5x
  Semi Long 1: 1.65x
  Semi Throw: 1.28x
  Standard: 1.25x
  Ultra Short Throw: Fixed
  Ultra Wide: 1.25x
  Wide Zoom: 1.18x


• Lens:
  LS1ST4 Ultra Short Throw (5J.JCY37.001)
  LS1ST3A Short Throw (5J.JPN37.001)
  LS1ST2A Wide Zoom 2 (5J.JPN37.002)
  LS1ST1A Wide Zoom 1 (5J.JPN37.003)
  LS1SDA Standard (5J.JPN37.004)
  LS1LT0 Semi Long (5J.JPN37.005)
  LS1LT1 Semi Long 1 (5J.JAM37.051)
  LS1LT2 Long Zoom 1 (5J.JAM37.031)
  LS1LT3 Long Zoom 2 (5J.JAM37.041)


• Projection Offset (Full-Height): 0%


• Keystone Adjustment: 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees


• Lens Shift Vertical (Optional Lens):
  Ultra Short Throw: -3% ~ +7% Vertical; -5% ~ 5% Horizontal; LS1ST3A
  Short Throw: -15% ~ +55% Vertical; -5% ~ +5% Horizontal; LS1ST2A
  Wide Zoom 2: -15% ~ +55% Vertical; -5% ~ +5% Horizontal; LS1ST1A
  Wide Zoom 1: -15% ~ +55% Vertical; -5% ~ +5% Horizontal; LS1SDA
  Standard: -15% ~ +55% Vertical; -5% ~ +5% Horizontal; LS1LT0
  Semi Long: -15% ~ +55% Vertical; -5% ~ +5% Horizontal; LS1LT1
  Semi Long 1: 0% ~ +50% Vertical; -10% ~ +10% Horizontal; LS1LT2
  Long Zoom 1: 0% ~ +50% Vertical; -10% ~ +10% Horizontal; LS1LT3
  Long Zoom 2: 0% ~ +50% Vertical; -10% ~ +10% Horizontal



Picture:

• Rec. 709 Coverage: 95%
• Picture Modes: 3D, Bright, DICOM SIM, HDR10, HLG, Infographic, Presentation, sRGB, User 1, User 2, Video



Compatibility:

• Input Lag: 33.4 ms (1080P 60Hz)
• Resolution Support: VGA(640 x 480) to WUXGA_RB(1920 x 1200) *RB=Reduced blanking
• Horizontal Frequency: 15K~135KHz
• Vertical Scan Rate: 23~120Hz



I/O Interface:

• PC in (D-sub 15pin): (x1)
• Monitor out (D-sub 15pin): (x1)
• HDMI in: (x2)
• LAN (RJ45): (x1)
• HDBaseT (RJ45): (x1)
• 3D Sync in: (x1)
• 3D Sync out: (x1)
• USB Type A: (x1)
• USB Type B: USB Type B-1(service)
• RS232 in (DB-9pin): (x1)
• RS232 out (DB-9pin): (x1)
• Wired Remote in (3.5mm Mini Jack): (x1)
• Wired Remote out (3.5mm Mini Jack): (x1)
• DC 12V Trigger (3.5mm Jack): (x1)



Audio:

• Speaker: No Speaker
• Audio in (3.5mm Mini Jack): (x1)



Environment:

• Operating Temperature: 0~40℃
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): 893W
• Stand-by Power Consumption: <0.5W
• Network Stand-by Power Consumption: <6W
• Acoustic Noise (Typ./Eco.)(dB): 42/38



Accessories:

• Remote Control w/ Battery: RCA025
• Power Cord (by region): x1 (1.8M)
• User Manual CD: 1 (12L)
• Installation Guide: Yes
• Warranty Card (by region): Yes
• Lens Cover: Yes



Dimension & Weight:

• Dimensions (WxHxD) (mm): 500 x 211 x 587.3
• Net Weight (lbs): 59 | (kg): 26.8



Projection System:

• Projection System: DLP

• Does the projector support 24/7 operation?
  Yes, the BenQ LU9800 is designed for continuous 24/7 operation, making it ideal for museums and exhibitions.


• What is the lifespan of the laser light source?
  The laser light source delivers up to 70,000 hours in Dimming Mode.


• Is it compatible with multiple lenses?
  Yes, it supports various optional lenses to maximize installation flexibility.
