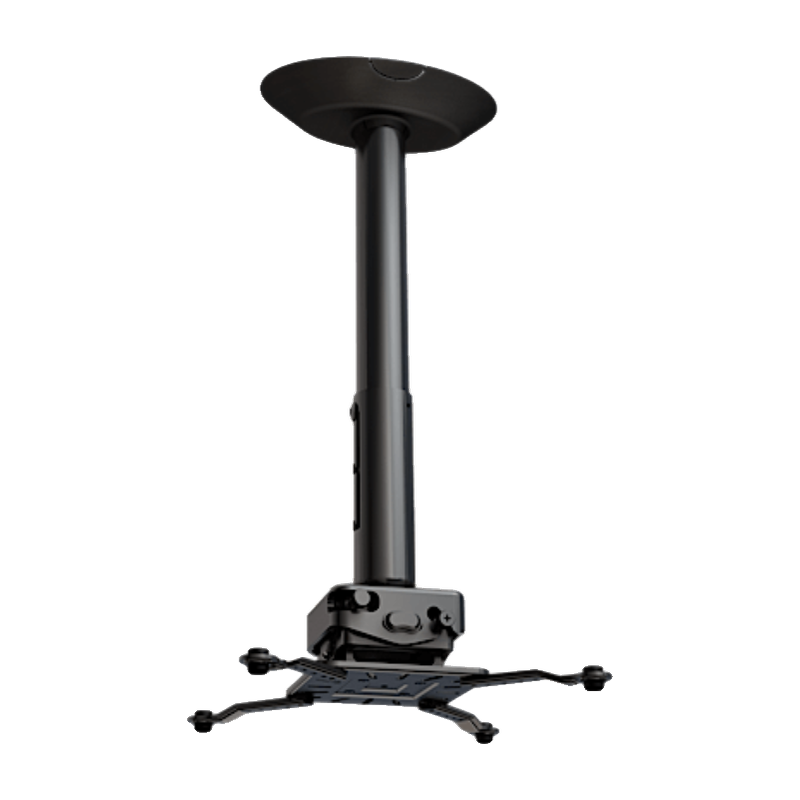

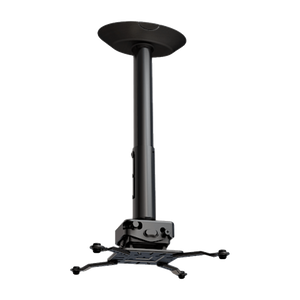

Projector Ceiling Mount with Extension Bar

American Express Apple Pay Discover Meta Pay Google Pay Mastercard PayPal Shop Pay Venmo Visa

Golf Simulator Experts

Fast & Free Shipping

Enjoy fast and free shipping (exclusions apply) on products from leading manufacturers!

Price Match Guarantee

Find a competitor with a lower price and we will match or beat it, no questions asked!

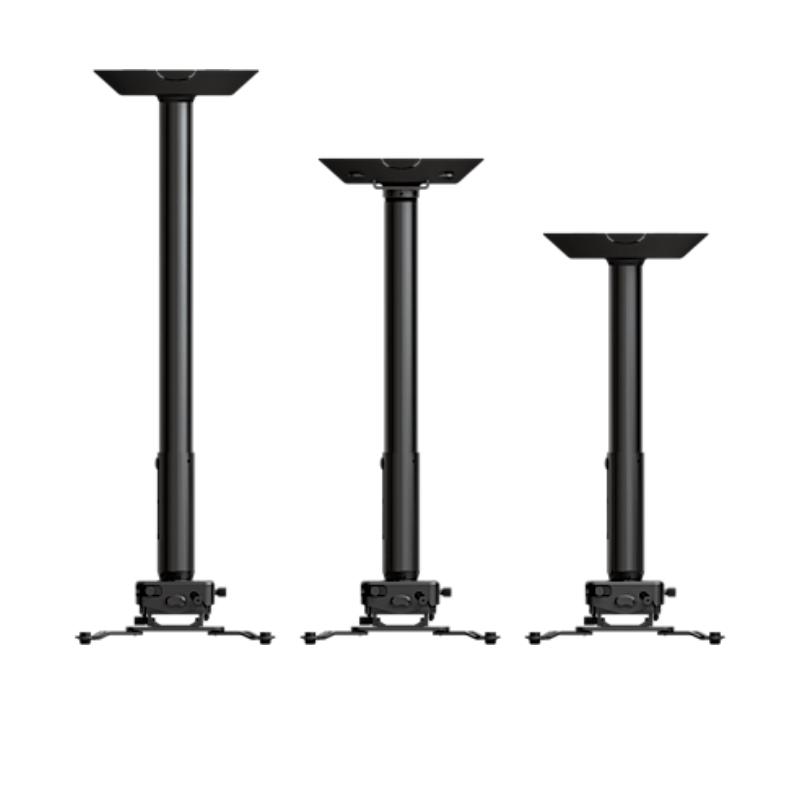

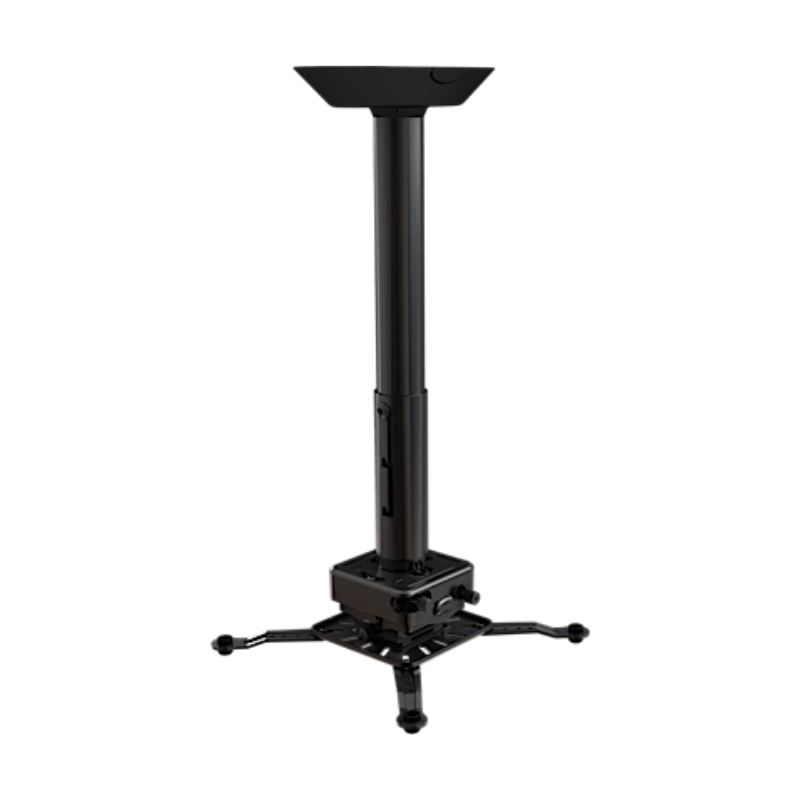

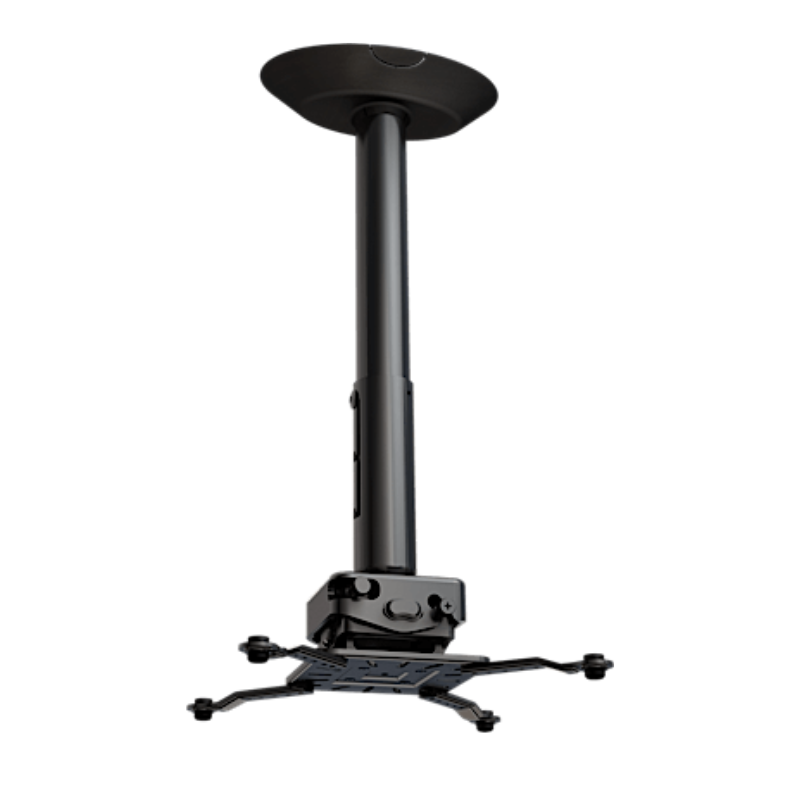

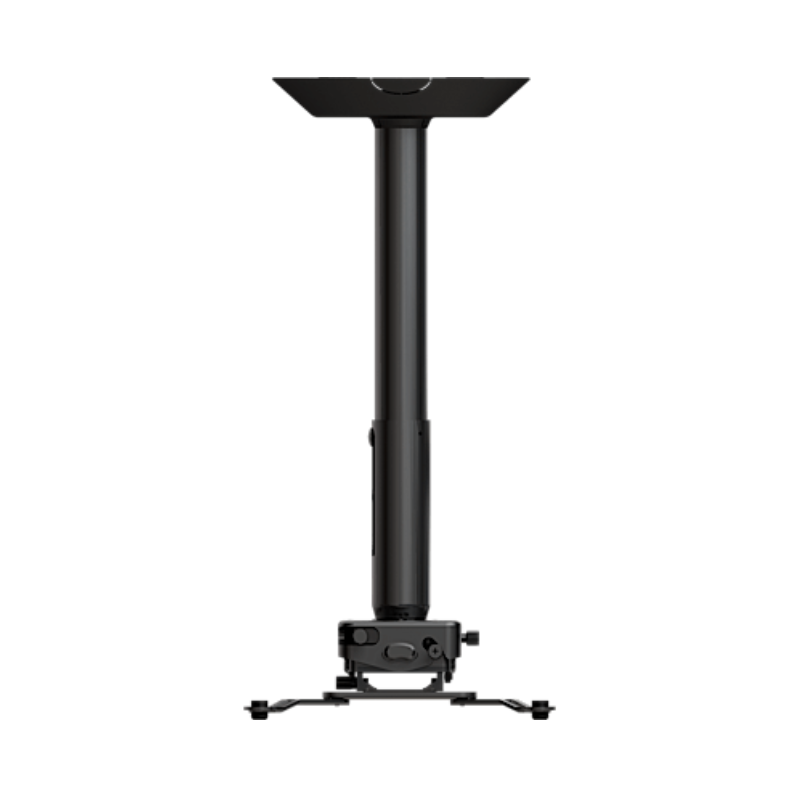

The Projector Ceiling Mount with Extension Bar is designed for maximum installation flexibility, ideal for both commercial and residential projector setups. This ceiling projector kit includes a JR3 universal adapter and offers 9 adjustable drop lengths ranging from 6"-11", 12"-18", 18"-24", 2'-3', 2'-4', 3'-5', 4'-6', 6'-8', and 8'-10'.

The mount includes a pre-assembled interface for quick and efficient installation, while built-in adjustments for roll, pitch, and yaw provide precise projector alignment. Built-in 1" incremental drop length adjustment and a quick release mechanism simplify servicing and future modifications. Security hardware is included at every connection point, ensuring a safe and secure installation.

The through-column cable routing system keeps cables out of sight, preserving a clean, professional look. Pre-sorted hardware packs further streamline the setup process, and the mount is compatible with all 1.5" NPT threaded pipe systems.

What's Included:

  • Projector Ceiling Mount with Extension Bar

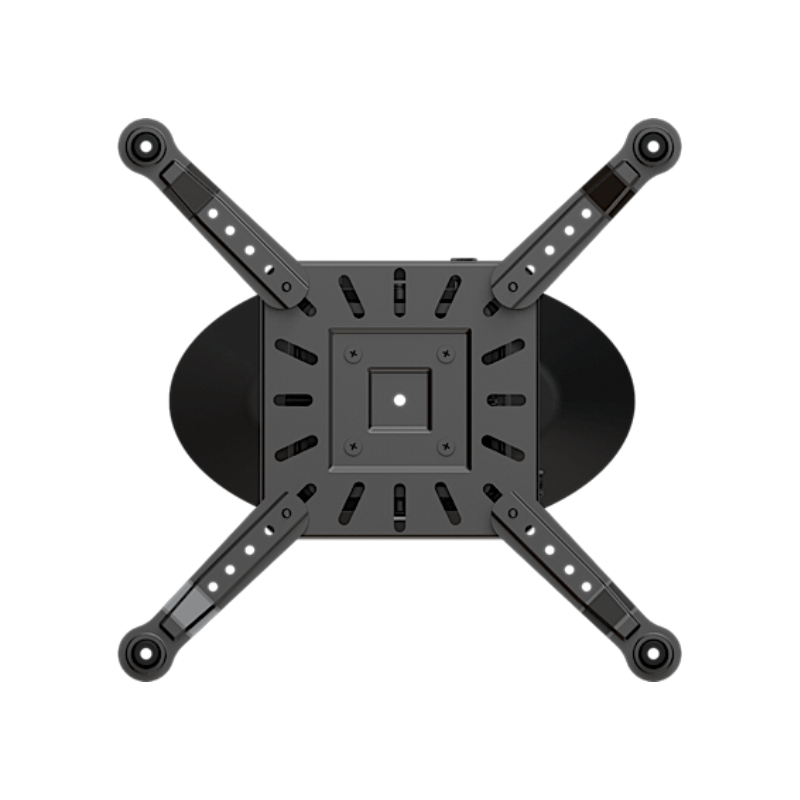

  • JR3 universal adapter
  • Security hardware for all connection points
  • Pre-sorted hardware pack
  • Quick release mechanism
  • Built-in roll, pitch, and yaw adjusters

Features

Adjustable Drop Length
Choose between 6"-11", 12"-18", 18"-24", 2'-3', 2'-4', 3'-5', 4'-6', 6'-8', and 8'-10' drop lengths to fit various ceiling heights and installation needs.

Security at Every Point
Security hardware is included for all connection points, enhancing safety and peace of mind in any environment.

Fully Assembled Interface
Mounting interface arrives completely assembled for quick, hassle-free installation.

Built-in Adjustability
Fine-tune projector alignment with fully adjustable roll (±8°), pitch (±15°), and yaw (360° rotation).

Quick Release Mechanism
Easily remove the projector for maintenance or upgrades without disassembling the entire mount.

Clean Cable Management
Through-column cable routing keeps wiring hidden for a professional and uncluttered appearance.

Pre-sorted Hardware Pack
Organized installation components reduce setup time and improve efficiency.

What's Included

Included with Your Purchase:

  • Projector Ceiling Mount with Extension Bar
  • JR3 universal adapter
  • Security hardware for all connection points
  • Pre-sorted hardware pack
  • Quick release mechanism
  • Built-in roll, pitch, and yaw adjusters

Specifications

  • Weight Capacity: 70 lbs (31.8 kg)
  • Max Mounting Pattern: 13.8" (351.5 mm) diameter
  • Pitch (Up/Down): ±15°
  • Roll (Side to Side): ±8°
  • Rotation (Yaw): 360°
  • Drop Length Options: 6"-11", 12"-18", 18"-24", 2'-3', 2'-4', 3'-5', 4'-6', 6'-8', and 8'-10'
  • Height Adjustment: 1" increments
  • Thread Compatibility: 1.5" NPT
  • Mounting Surface: Wood joist, structural wood, or structural concrete (HE4 accessory required)
  • Joist Spacing: Single joist
  • Construction: Aluminum and high-grade cold rolled steel
  • Finish: Scratch-resistant epoxy powder coat
  • Product Weight: 6.2 lb (JKR3-11A), 7.5 lb (JKR3-18A), 8.6 lb (JKR3-24A)
  • Package Dimensions: 20"x10"x6" (all models)
  • Color: Black
  • Model Numbers: JKR3-11A (6"–11"), JKR3-18A (12"–18"), JKR3-24A (18"–24")
  • Warranty: 10 years

FAQ

Q: Is the Projector Ceiling Mount with Extension Bar compatible with all projectors?
A: The JR3 universal adapter supports a wide range of mounting patterns that can accommodate the vast majority of modern projectors.

Q: Can the mount be installed on a concrete ceiling?
A: Yes, with the HE4 accessory, it can be mounted to structural concrete surfaces.

Q: Is the mount adjustable after installation?
A: Yes, it offers full roll, pitch, and yaw adjustability even after the projector is mounted.

Q: How do I choose the correct drop length?
A: Select from multiple drop-length options (6"-11", 12"-18", 18"-24", 2'-3', 2'-4', 3'-5', 4'-6', 6'-8', and 8'-10') based on your ceiling height. We recommend having the projector lens positioned no higher than the top of your impact screen.
