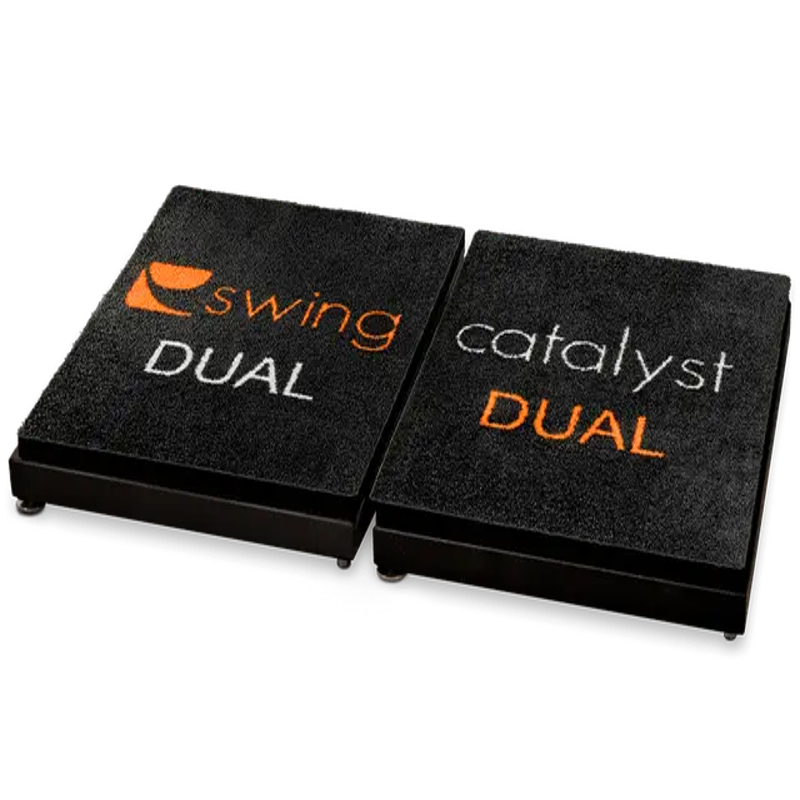

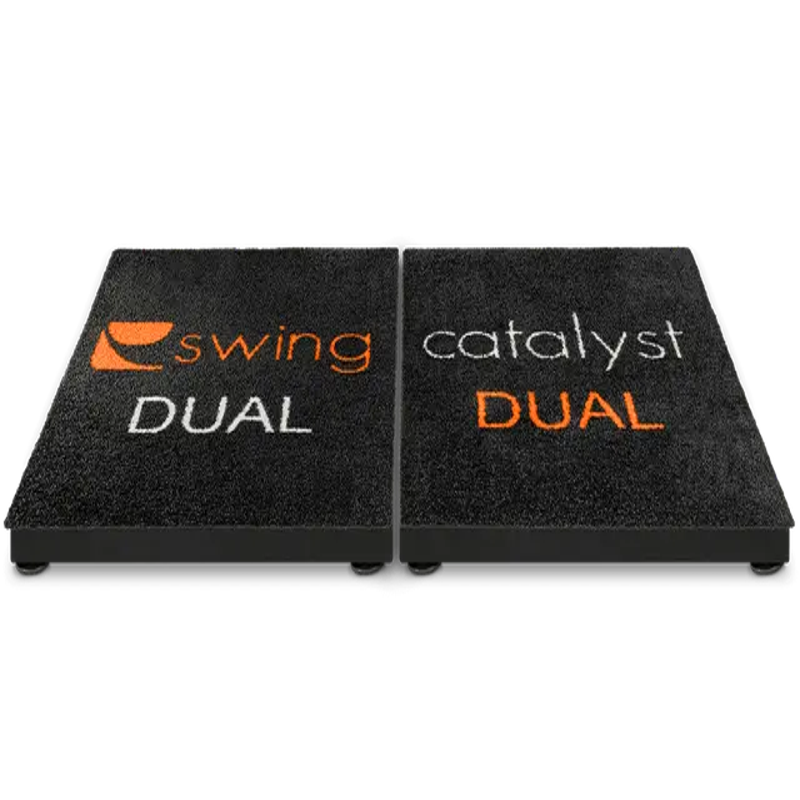

The Swing Catalyst Dual Motion Plate is the ultimate ground reaction force analysis tool for serious golf instructors and athletes. Designed as the flagship product in Swing Catalyst’s lineup, this advanced dual-plate system delivers unparalleled insights into swing mechanics by capturing both pressure mapping and three-dimensional force data for each foot.
With the ability to measure horizontal shear, torque, and vertical force independently for the left and right foot, the Dual Motion Plate allows users to track precise balance and pressure patterns throughout the swing. Its detailed pressure mapping identifies stance width, individual Centers of Pressure (CoP), and real-time shifts in weight distribution, enabling smarter swing adjustments. Seamlessly integrated into the Swing Catalyst software, the system synchronizes with high-speed video and launch monitor data to give coaches and athletes a complete biomechanical performance profile.
What's Included:
Pressure Trace
Optimize balance, stability, and power transfer by making targeted adjustments based on the golfer’s overall pressure movement pattern.
Individual Balance Trace
Identify and correct imbalances by analyzing how each foot manages pressure during the swing.
Pressure Distribution
Track pressure between the feet to refine balance and generate more power with greater control.
Heat Mapping
Visualize pressure concentration across the feet to fine-tune footwork and pressure shifts throughout the swing.
Stance Width
Customize stance width to enhance stability and increase energy transfer during the swing.
Balance Point Speed
Measure the timing and speed of weight shifts to improve pressure efficiency and swing power.
Horizontal Shear Force Y Axis
Time shear force application precisely to optimize ground reaction and maximize clubhead speed.
Twisting Force
Enhance clubhead control and speed by fine-tuning the torque generated during the swing.
Free Moment
Minimize power leaks and promote effective motion by optimizing this often-overlooked force component.
Vertical Force
Increase clubhead velocity by adjusting the timing and magnitude of vertical force application.
Force Vectors
Experience an intuitive 3D visual overlay of ground reaction forces, adding clarity to performance analysis.
Included with Your Purchase:
Q: What makes the Dual Motion Plate different from other force plates?
A: It provides separate data for each foot, including detailed 3D force and pressure measurements, which enhances the depth of swing analysis.
Q: Can this plate be used outdoors?
A: No, it is designed for studio installation to ensure consistent readings and environmental control.
Q: Does it work with any launch monitor?
A: Yes, it integrates with a wide range of launch monitors and synchronizes via Swing Catalyst software.
Q: Is there a required software version?
A: Yes, the Dual Motion Plate requires Pro+ Software for full functionality.
