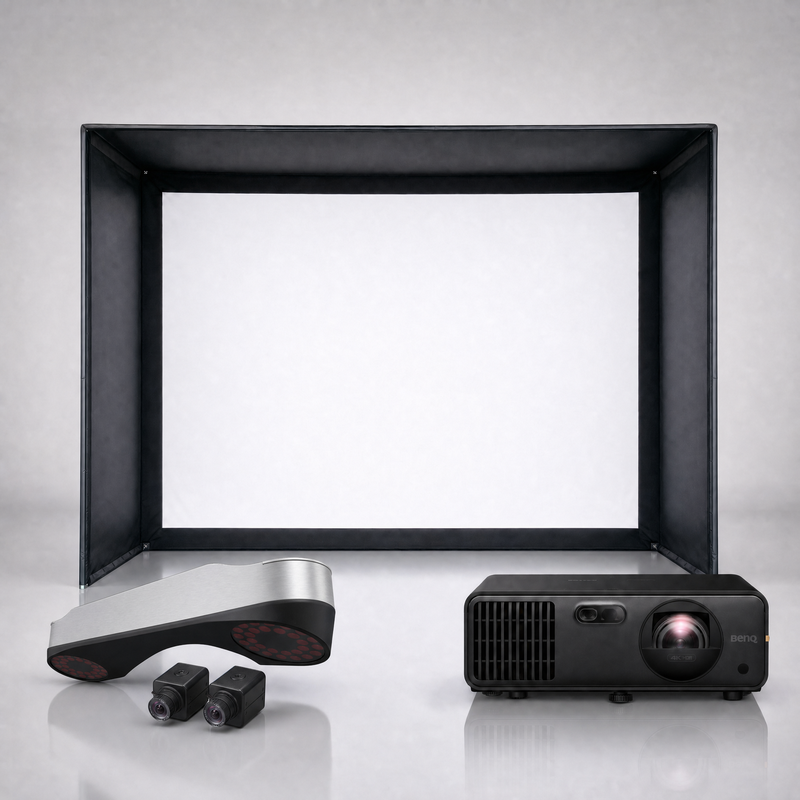

ProTee United VX Launch Monitor SIG DIY Golf Simulator Enclosure Projector Package

The ProTee United VX Launch Monitor SIG DIY Golf Simulator Enclosure Projector Package is a complete golf simulator package built around the SIG DIY Golf Simulator Enclosure Kit with Impact Screen and your choice of BenQ, LG, Epson, or Optoma projector. Everything is matched to work together, so you get a simulator that fits your space and is ready to play.

What's Included:

• SIG DIY Golf Simulator Enclosure Kit with Impact Screen (Selected Size and Screen)
• ProTee United VX Launch Monitor
• choice from BenQ, LG, Epson, or Optoma projectors
• Free Swing Camera Set (limited time only)
• Perpetual License of ProTee Labs Software

Optional Accessories (Not Included):

• SIG DIY Golf Simulator Enclosure Pipe Frame Kit (Recommended)
• Landing Pad Mat for SIG DIY Golf Simulator Enclosure
• SIG Golf Simulator Blackout Screen
• Hitting Mat
• Putting Turf
• Projector Mount
• Gaming PC or Laptop

Please Note: The SIG DIY Golf Simulator Enclosure Kit does NOT come with pipe framing. You are responsible for purchasing 1" EMT piping separately and can be found at most local hardware stores. Pipe cut measurements are included in the manual of your selected size. Alternatively, add the SIG DIY Golf Simulator Enclosure Pipe Frame Kit to receive pre-cut pipe framing for your selected size.

Before purchasing, please view the Specifications tab to confirm that the Overall Enclosure Dimensions for the Enclosure Size you have selected will be suitable for your space.

Features

Choose Your Aspect Ratio and Size
Offered in traditional aspect ratios 1:1, 4:3, 16:9, and 16:10, the SIG DIY Golf Simulator Enclosure Kit provides the optionality to choose your desired aspect ratio and enclosure size.

Choice of SIGPRO Premium (White) or Premier (Gray) Impact Screen
Now available with either the SIGPRO Premium (White) or SIGPRO Premier (Gray) Impact Screen, giving you the flexibility to choose the best option for your performance needs and budget.

In a head-to-head comparison conducted by the MyGolfSpy team, the SIGPRO Premium Screen surpassed the industry's most popular impact screen on the market.

The results demonstrated the superior durability of the SIGPRO screen compared to its competitors, along with reduced sound and bounce-back effects. Featuring double-stitched black vinyl edges and grommets, mounting the screen is effortless with the included ball bungees.

SIG Surround & Ball Bungees
Complete the look of your setup with the SIG Surround, designed to fit seamlessly around your enclosure for a polished appearance. Crafted from durable vinyl material, the SIG Surround enhances the aesthetics of your SIG DIY Golf Simulator Enclosure.

Included 6" Ball Bungees are utilized to securely attach the screen and nylon surround to the enclosure frame.

Pipe Connectors
Assemble your frame with the pipe connectors and set screws included with your SIG DIY Golf Simulator Enclosure Kit.

Instant Reaction
Experience the power of A.I. (Artificial Intelligence) and Machine Learning as the smart shot analysis software measures and projects all your data in less than a second shot delay is under 0.2 seconds. Get almost instant feedback after each shot for an immersive practice session.

Unrivaled 24/7 Support
ProTee VX offers around-the-clock customer support with a responsive team that continually enhances the software based on user feedback for an evolving golf experience.

Swing Cameras
Compatible with any USB driverless camera, allowing users to select the camera that best fits their swing analysis needs.

The VX Will Measure It All
The VX measures all relevant ball and club data. Each data point is specifically measured and visualized to produce and learn from results you can trust.

Short Throw Design Built for Tight Golf Bays
Every projector on the list is a short throw or ultra short throw design, so it fills a full size impact screen from close range instead of sitting back in your swing path. Throw ratios go as tight as 0.496:1 on the Optoma UHZ35ST, which puts a 100" image up from just over a meter away, and 0.5 to 0.7 on the Epson L695SE, while the LG ProBeam BU53RG lands a 150" screen from 10.3'. Optical zoom, lens shift and geometric correction on the models that offer them let you square the picture to the screen without relocating the mount.

Laser Light Source Brightness and Longevity
The lineup is laser driven from end to end, so there are no lamps to swap out and no slow fade partway through the season. Rated light source life runs from 20,000 hours on the BenQ LK936ST and the LG ProBeam BU53RG up to 30,000 virtually maintenance free hours on the Epson L695SE and the Optoma UHZ35ST DuraCore engine. Brightness scales with the model you choose, from 3,500 lumens to 6,000 lumens, which keeps greens and fairways vivid even with the room lights on.

4K and Full HD Resolution Choices
Match the resolution to your screen size and your budget. True 4K UHD choices such as the BenQ AK700ST, the LG ProBeam BU53RG and the Optoma UHZ35ST resolve 8.3 million pixels, four times the detail of Full HD, while the Epson L695SE runs WUXGA with 4K Enhancement to accept 4K content and put 4.6 million pixels on screen. Full HD 1080p models round out the lineup for smaller bays where a sharp, bright image matters more than pixel count.

What's Included

Included with Your Purchase:

• SIG DIY Golf Simulator Enclosure Kit with Impact Screen (Selected Size and Screen)
• ProTee United VX Launch Monitor
• choice from BenQ, LG, Epson, or Optoma projectors
• Free Swing Camera Set (limited time only)
• Perpetual License of ProTee Labs Software

Optional Accessories (Not Included):

• SIG DIY Golf Simulator Enclosure Pipe Frame Kit (Recommended)
• Landing Pad Mat for SIG DIY Golf Simulator Enclosure
• SIG Golf Simulator Blackout Screen
• Hitting Mat
• Putting Turf
• Projector Mount
• Gaming PC or Laptop

What's Measured

The ProTee United VX Launch Monitor is equipped with high-speed, dual-vision cameras to track full club and ball data. Integrated with artificial intelligence and machine learning, the ProTee United VX allows you to play with your own equipment as-is, without the need for specially marked balls or club stickers, offering a seamless user experience.

Ball Data Measured:

• Ball Speed
• Back Spin
• Side Spin
• Total Spin
• Spin Axis
• Launch Direction
• Launch Angle

Club Data Measured:

• Club Speed
• Club Path
• Club Face Angle
• Club Face to Path
• Smash Factor
• Attack Angle
• Dynamic Loft
• Club Lie Angle
• Impact Point Vertical & Horizontal

Flight Data:

• Flight Path
• Apex Height
• Apex Time
• Total Distance
• Carry Distance
• Off Line
• Air Time
• Run
• Descent Angle

Specifications

ProTee United VX:

• ProTee VX Unit Dimensions: 83L x 20W x 17H (cm)
• ProTee VX Unit Weight: 8.2 Kg (18 lbs)
• Mounting Plate Dimensions: 43.1L x 15.2W x 2.3H (cm)
• Mounting Plate Weight: 1.2 Kg (2.6 lbs)
• Boxed Dimensions: 94L x 26W x 29H (cm)
• Boxed Weight: 12 Kg (26.5 lbs)
• Hitting Area Dimensions: 21"W x 25"L


SIG DIY Enclosure Specifications:
Every enclosure size is 5' deep. Select a size below to open its assembly manual.

1:1 Aspect Ratio:

• 8'4"W x 8'4"H x 5'D (1:1)
• 10'4"W x 10'4"H x 5'D (1:1)

4:3 Aspect Ratio:

• 10'4"W x 7'11"H x 5'D (4:3)
• 10'10"W x 8'4"H x 5'D (4:3)
• 12'2"W x 9'4"H x 5'D (4:3)
• 12'10"W x 9'10"H x 5'D (4:3)
• 13'7"W x 10'4"H x 5'D (4:3)

16:9 Aspect Ratio:

• 13'7"W x 7'11"H x 5'D (16:9)
• 14'2"W x 8'4"H x 5'D (16:9)

16:10 Aspect Ratio:

• 15'4"W x 9'10"H x 5'D (16:10)

Projector Specifications
BenQ AH30ST:

• Brightness (ANSI lumens): 3000
• Resolution: 1080P (1920x1080)
• Native Aspect Ratio: 16:9
• Selectable Aspect Ratios: 1:1, 4:3, 16:9, 16:10
• Contrast Ratio (FOFO): 20,000:1
• Light Source: 4LED
• Light Source Life: 20,000 hrs (Normal), 30,000 hrs (Eco)
• Throw Ratio: 0.69-0.83
• Zoom Ratio: 1.2x

BenQ AH500ST:

• Brightness (ANSI lumens): 4000
• Resolution: 1080P (1920×1080)
• Native Aspect Ratio: 16:9
• Selectable Aspect Ratios: 16:9, 16:10, 4:3, 1:1
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: Normal: 20,000 hrs, ECO: 38,000 hrs
• Throw Ratio: 0.499
• Zoom Ratio: Fixed

BenQ AH700ST:

• Brightness (ANSI lumens): 4000
• Native Resolution: 1080P (1920x1080)
• Native Aspect Ratio: 16:9
• Selectable Aspect Ratios: 16:9, 16:10, 4:3, 1:1
• Light Source: Laser
• Light Source Life: Normal: 20,000 hrs
• Throw Ratio: 0.69~0.83
• Zoom Ratio: 1.2x

BenQ LH860ST:

• Brightness (ANSI lumens): 5000
• Resolution: 1080P (1920 x 1080)
• Native Aspect Ratio: 16:9
• Contrast Ratio (FOFO): 3,000,000:1
• Light Source: Laser
• Light Source Life: Normal 20,000 hrs; ECO 30,000 hrs
• Throw Ratio: 0.5
• Zoom Ratio: Fixed

BenQ LK830ST:

• Brightness (ANSI lumens): 4000
• Resolution: 4K UHD (3840 x 2160)
• Native Aspect Ratio: 16:9
• Contrast Ratio (FOFO): 3,000,000:1
• Light Source: Laser
• Light Source Life: 20,000 hrs
• Throw Ratio: 0.5
• Zoom Ratio: Fixed

BenQ AK700ST:

• Brightness (ANSI lumens): 4000
• Resolution: 4K UHD (3840 × 2160)
• Native Aspect Ratio: 16:9
• Selectable Aspect Ratios: 16:9, 16:10, 4:3
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: 20,000 hrs
• Throw Ratio: 0.69-0.83
• Zoom Ratio: 1.2x

BenQ LK936ST:

• Brightness (ANSI lumens): 5100
• Native Resolution: 4K UHD (3840×2160)
• Native Aspect Ratio: 16:9
• Selectable Aspect Ratios: 16:9, 16:10, 4:3, 2.4:1
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: Normal: 20,000 hrs
• Throw Ratio: 0.81~0.89
• Zoom Ratio: 1.1x

LG ProBeam BU53RG:

• Resolution: 4K UHD (3840 x 2160)
• Brightness: 5000 ANSI Lumens
• Aspect Ratio Support: 4:3, 16:6, 16:9, 16:10, 21:9
• Throw Distance: Short Throw
• Throw Ratio: 0.94 ‐ 1.14
• Light Source: Laser (up to 20,000 hours)
• Contrast Ratio: 3,000,000:1
• Zoom: 1.2x
• Digital Image Adjustment: Advanced Edge Adjustment & Warping (4, 9, 15, 25 pt), Image Rotation (H/V)
• Screen Size: 40" ~ 300"
• Lens Shift: Horizontal ± 20%, Vertical ± 50%
• HDR: Yes
• Noise: 29dB to 33dB

Epson L695SU:

• White Light Output: 6,200 lumens
• Native Resolution: WUXGA (1920 x 1200)
• Aspect Ratio: Supports 4:3, 16:10, 16:9*, 16:6*, 21:9*
• Contrast Ratio: Up to 5,000,000:1
• Light Source: Laser diode
• Light Source Life: Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours
• Throw Rate Range: 0.79 – 1.36 (optical)
• Zoom Ratio: 1.0 – 1.7x (optical)

Epson L695SE:

• White Light Output: 6,000 lumens
• Native Resolution: WUXGA With 4K Enhancement (1920 x 1200 x 2)
• Aspect Ratio: Supports 4:3, 16:10, 16:9*, 16:6*, 21:9*
• Contrast Ratio: Up to 5,000,000:1
• Light Source: Laser Diode
• Light Source Life: Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours
• Throw Rate Range: 0.5 – 0.7 (optical)
• Zoom Ratio: 1.0 – 1.4x (optical)

Epson L795SE:

• White Light Output: 7,000 lumens
• Native Resolution: WUXGA with 4K Enhancement (1920 x 1200 x 2)
• Aspect Ratio: Supports 4:3, 16:10, 16:9*, 16:6*, 21:9*
• Contrast Ratio: Up to 5,000,000:1
• Light Source: Laser diode
• Light Source Life: Normal: 20,000 hours; Quiet: 20,000 hours; Extended: 30,000 hours
• Throw Rate Range: 0.79 – 1.36 (optical)
• Zoom Ratio: 1.0 – 1.7x (optical)

Optoma ZW350ST:

• Brightness: 3,600 lumens
• Resolution: WXGA (1280x800)
• Native Aspect Ratio: 16:10
• Compatible Aspect Ratios: 4:3,16:9
• Contrast Ratio: 300,000:1
• Light Source Type: Laser
• LASER Life: 30,000 hours
• Throw Ratio: 0.521:1
• Zoom Type: Fixed

Optoma GT2000HDR:

• Brightness: 3,500 lumens
• Resolution: 1080P Full HD (1920 x 1080)
• Native Aspect Ratio: 16:9
• Compatible Aspect Ratios: 4:3, 16:9, 16:10
• Contrast Ratio: 300,000:1
• Light Source Type: Laser
• LASER Life: 30,000 hours
• Throw Ratio: 0.496:1
• Zoom Type: Fixed

Optoma UHZ35ST:

• Brightness: 3,500 lumens
• Resolution: UHD (3840 x 2160)
• Native Aspect Ratio: 16:9
• Compatible Aspect Ratios: 4:3, 16:9, 16:10
• Contrast Ratio: 500,000:1
• Light Source Type: Laser
• LASER Life: 30,000 hours
• Throw Ratio: 0.496:1
• Zoom Type: Fixed

Optoma ZU607TST:

• Brightness: 6,000 lumens
• Resolution: WUXGA (1920 x 1200)
• Native Aspect Ratio: 16:10
• Compatible Aspect Ratios: 4:3,16:9,16:10
• Contrast Ratio: 300,000:1
• Light Source Type: Laser
• LASER Life: 30,000 hours
• Throw Ratio: 0.58:1
• Zoom Type: Fixed

Requirements

Space Requirements:

Calibration:

Resources

Documents:

SIG DIY Golf Simulator Enclosure Kit Manuals:

1:1 Aspect Ratio:

• 8'4"W x 8'4"H x 5'D (1:1)
• 10'4"W x 10'4"H x 5'D (1:1)

4:3 Aspect Ratio:

• 10'4"W x 7'11"H x 5'D (4:3)
• 10'10"W x 8'4"H x 5'D (4:3)
• 12'2"W x 9'4"H x 5'D (4:3)
• 12'10"W x 9'10"H x 5'D (4:3)
• 13'7"W x 10'4"H x 5'D (4:3)

16:9 Aspect Ratio:

• 13'7"W x 7'11"H x 5'D (16:9)
• 14'2"W x 8'4"H x 5'D (16:9)

16:10 Aspect Ratio:

• 15'4"W x 9'10"H x 5'D (16:10)

Videos:

SIG DIY Golf Simulator Enclosure Kit Assembly Instructions
