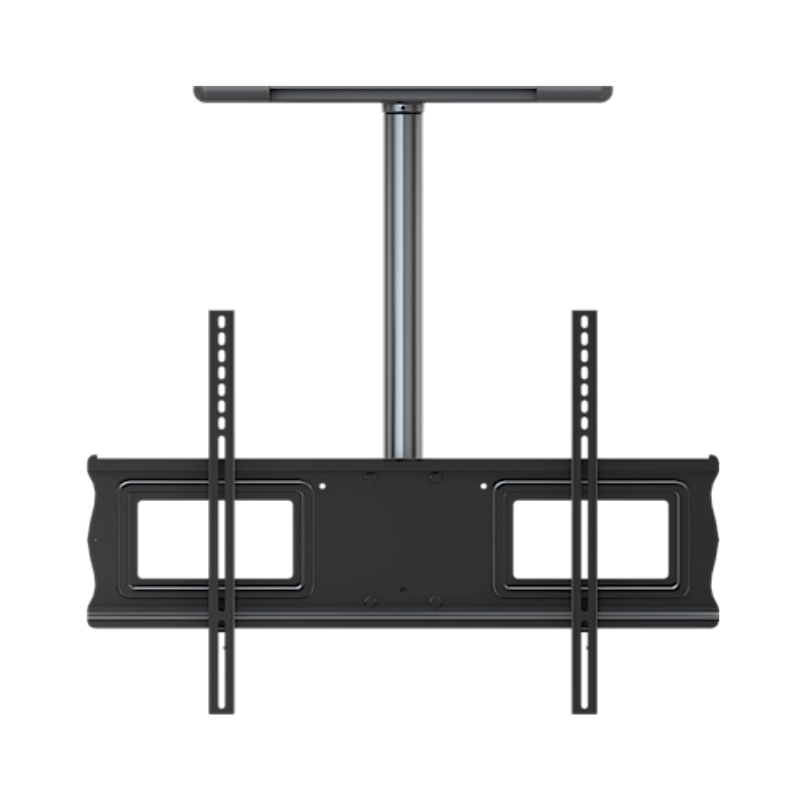

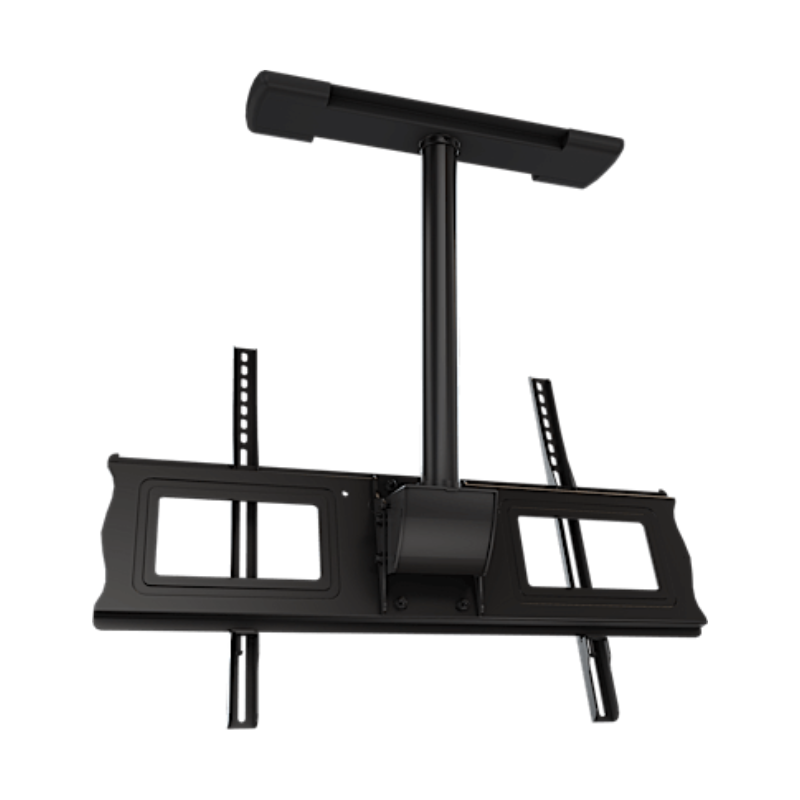

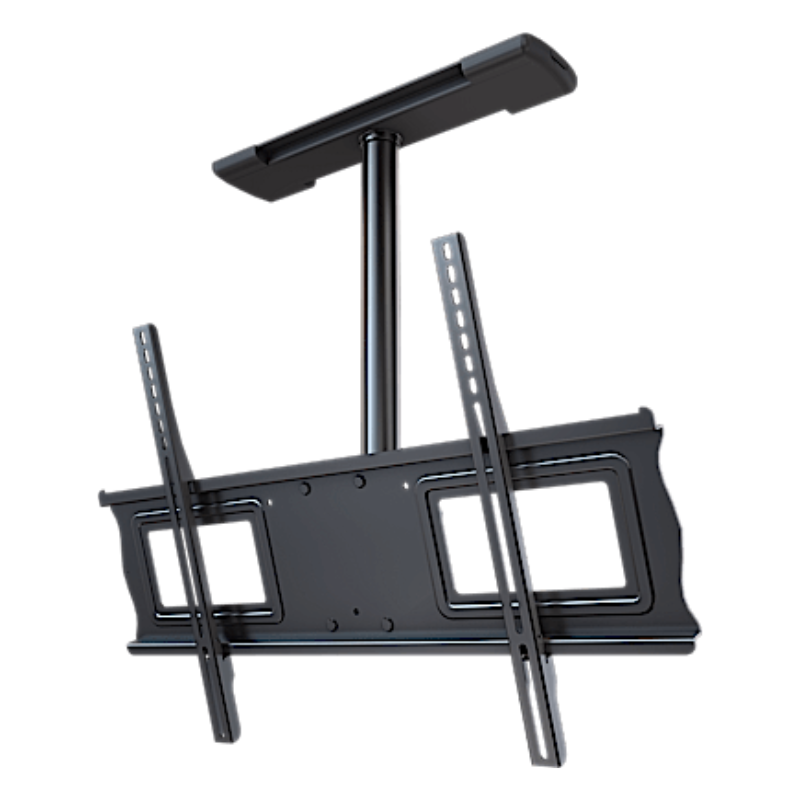

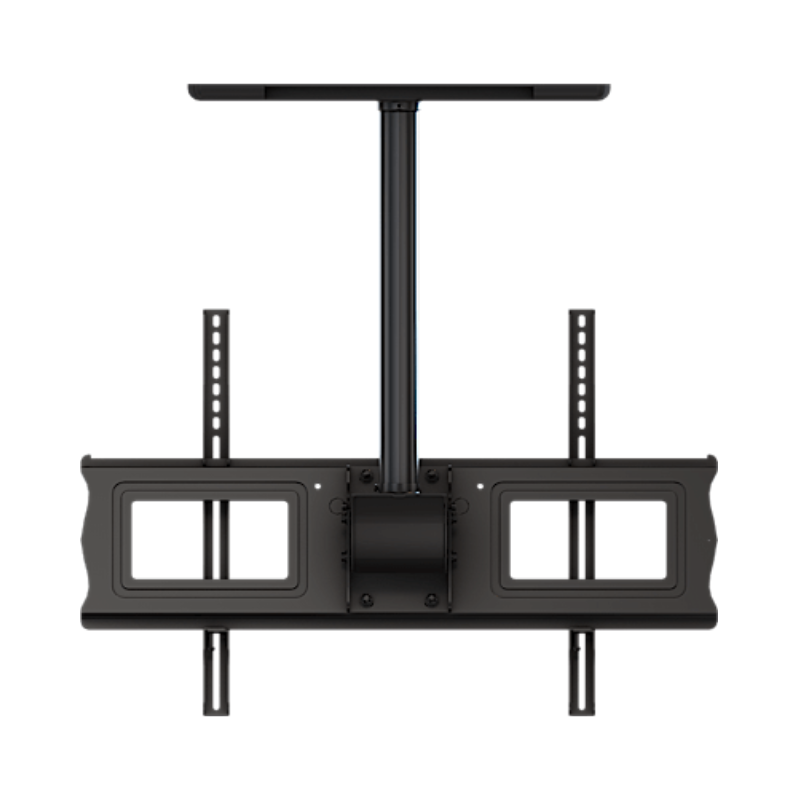

The Complete Ceiling Installation Kit for Displays is a comprehensive mounting solution designed for ceiling installations of flat panel screens ranging from 37" to 75"+. Featuring a 3′ fixed drop, this all-in-one kit includes a universal screen adapter, a 36" extension column (E3), and a structural ceiling adapter (CA2) tailored for dual joist spacing on 16" centers.
Its universal design is VESA compatible, offering effortless installation with pin-locking incremental tilt adjustment and continuous 20° forward tilt. The 360° rotation combined with tool-free post-installation leveling ensures ideal screen positioning from any angle. Decorative bolt covers and through-column cable routing deliver a clean, professional appearance. Built with high-grade cold rolled steel and a sleek black powder-coated finish, this kit is engineered for long-term durability.
What's Included:
Universal Design
Compatible with a wide range of flat panel displays from 37” to 75”+.
VESA Compatible
Supports multiple mounting patterns up to 723x501mm for maximum flexibility.
Fixed Drop Length of 36″
Provides a secure, stable installation with a fixed 3' vertical drop.
Fast and Easy Installation
Includes pre-sorted hardware and intuitive design to simplify setup.

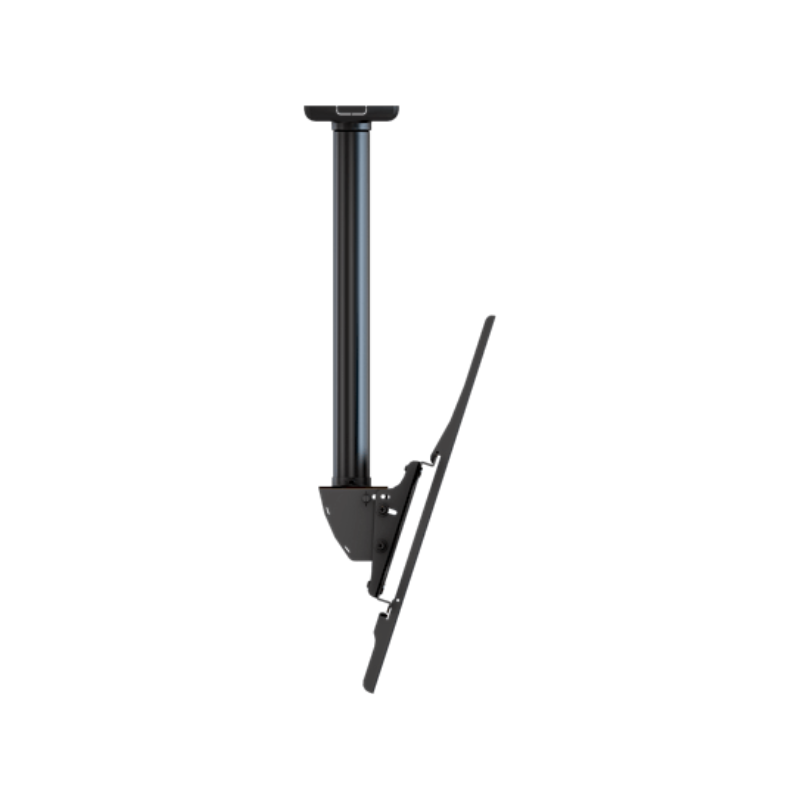

20° Tilt and 360° Rotation
Offers continuous forward tilt and full rotational capability for optimal screen alignment.
Pin-Locking Tilt Adjustment
Allows secure angle locking in incremental steps for consistent screen orientation.
Tool-Free Leveling
Post-installation leveling feature allows adjustments without tools for fine-tuning.
Integrated Cable Management
Through-column cable routing hides wires for a clean appearance.
Decorative Finish
Includes bolt covers to maintain a polished, professional ceiling mount look.
Durable Construction
Made from high-grade cold rolled steel with a scratch-resistant black powder coat finish.
Included with Your Purchase:
Q: What size screens is this kit compatible with?
A: It supports flat panel screens from 37” to 75”+, including larger models depending on VESA pattern and weight.
Q: Does it support rotation and tilt?
A: Yes, it allows continuous tilt up to 20° forward and 360° full rotation.
Q: Can I hide cables inside the pole?
A: Yes, through-column cable routing keeps wires concealed for a clean installation.
Q: Is this mount compatible with all joist types?
A: It's designed for dual joist mounting on 16" centers and supports structural wood or concrete with the proper accessories.
Q: Does it allow post-installation adjustments?
A: Yes, tool-free leveling and tilt adjustments make it easy to fine-tune after installation.
