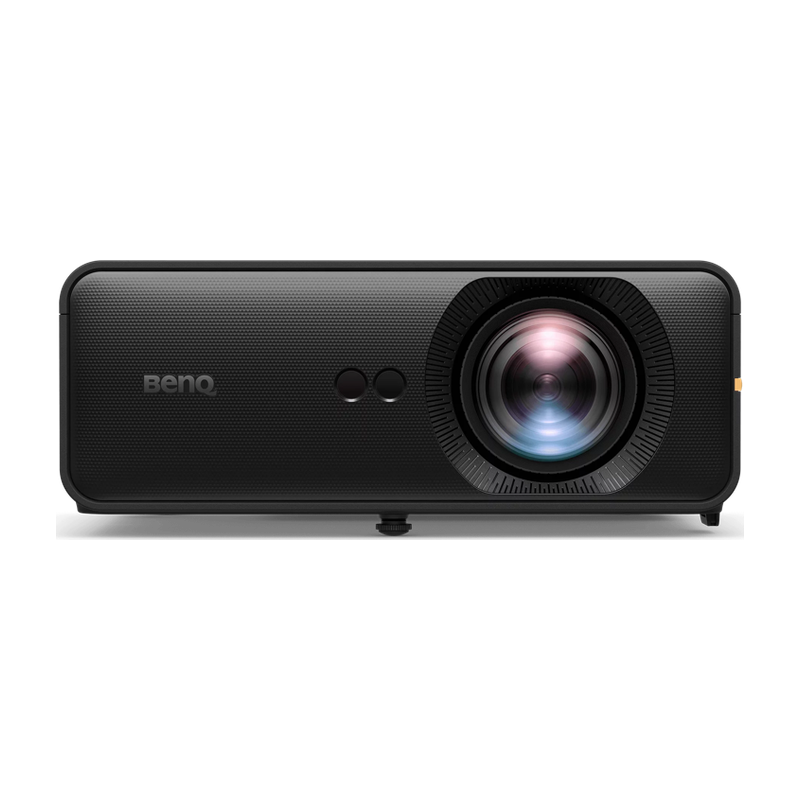

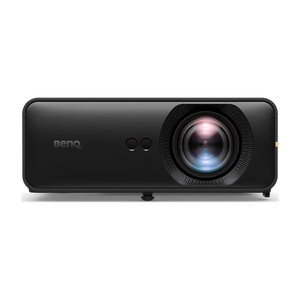

BenQ AH500ST 4000 Lumen Short Throw 1080P Laser Golf Simulator Projector front view.

BenQ AH500ST 4000 Lumen Short Throw 1080P Laser Golf Simulator Projector ceiling mounted view.

BenQ AH500ST 4000 Lumen Short Throw 1080P Laser Golf Simulator Projector top view with controls.

BenQ AH500ST 4000 Lumen Short Throw 1080P Laser Golf Simulator Projector product dimensions.

BenQ AH500ST 4000 Lumen Short Throw 1080P Laser Golf Simulator Projector rear view with ports.

BenQ AH500ST 4000 Lumen Short Throw 1080P Laser Golf Simulator Projector screen size and distance chart.

BenQ AH500ST 4000 Lumen Short Throw 1080P Laser Golf Simulator Projector remote control.

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector

Name: BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector
Brand: BenQ
SKU: AH500ST-001
Price: 1999.0 USD
Availability: InStock
Rating: 5.0 (2 reviews)

$1,999.00 $2,499.00

Accessories

Projector Ceiling Mount with Extension Bar and JR3 Universal Adapter with angled view of black ceiling mount and arm.

Projector Ceiling Mount with Extension Bar (variant name) Learn More

$399.00

The Projector Ceiling Mount with Extension Bar is designed for maximum installation flexibility, ideal for both commercial and residential projector setups. This ceiling projector kit includes a JR3 universal adapter and offers 9 adjustable drop lengths ranging from 6"-11", 12"-18", 18"-24", 2'-3', 2'-4', 3'-5', 4'-6', 6'-8', and 8'-10'.

The mount includes a pre-assembled interface for quick and efficient installation, while built-in adjustments for roll, pitch, and yaw provide precise projector alignment. Built-in 1" incremental drop length adjustment and a quick release mechanism simplify servicing and future modifications. Security hardware is included at every connection point, ensuring a safe and secure installation.

The through-column cable routing system keeps cables out of sight, preserving a clean, professional look. Pre-sorted hardware packs further streamline the setup process, and the mount is compatible with all 1.5" NPT threaded pipe systems.

What's Included:

Projector Ceiling Mount with Extension Bar
JR3 universal adapter
Security hardware for all connection points
Pre-sorted hardware pack
Quick release mechanism
Built-in roll, pitch, and yaw adjusters

Go to Product Page

Projector Ceiling Flush Mount low view of mount mounted to ceiling.

Projector Ceiling Flush Mount (variant name) Learn More

$259.99

The Projector Ceiling Flush Mount is a low-profile projector mount that provides 3.46" of drop, making it ideal for installations that require the projector to mounted close to the ceiling with minimal drop.

Designed for effortless, tool-free precision, the Projector Ceiling Flush Mount can accommodate large projectors with ease and those with off-center lenses. Constructed with heavy-duty materials and featuring intuitive micro-adjustment technology, this mount is the top-tier solution for ease of use.

A unique lead screw micro-adjustment mechanism allows for precise control of pitch, roll, and yaw by simply rotating the easy-grip knobs - no tools required. The quick-release mechanism provides hassle-free projector servicing, without the need to disassemble the mount. Fully pre-assembled and compatible with all standard 1.5″ NPT threaded pipes, this mount is both time-saving and versatile. Available in black and white finishes.

What's Included:

Projector Ceiling Flush Mount (black or white finish)
Pre-sorted hardware pack
Integrated security hardware at all connection points

Go to Product Page

Floor Mounted Projector Case front view.

Floor Mounted Projector Case Learn More

$329.00

The Floor Mounted Projector Case is designed to allow you to mount your short throw golf simulation projector on the floor while shielding the projector from golf ball strikes. Eliminating the need to mount your projector on the ceiling, the Floor Mounted Projector Case is made of steel construction for durability and can be placed in front or besides the tee area.

The angled construction of the case enables shots that are hit directly into it to slide up the case and towards the screen. Vents are featured on the sides and front of the case to prevent overheating of your projector and a plexiglass front protects your projector lens. An artificial grass top is featured and you are provided the option to mount the case to the floor and fix the projector to the case for additional stability.

Please note: Before purchasing, ensure the Floor Mounted Projector Case will fit your projector.

Dimensions

Outside Dimensions: 6.69"H (576mm) x 22.68"W (380mm) x 14.96"D (576mm)
Inside Dimensions: 6.1"H (155mm) x 14.37"W (365mm) x 12.4"D (315mm)

Go to Product Page

4K HDMI Cable (variant name) Learn More

$39.99

Experience breathtaking visuals with this High-Speed HDMI Cable. Featuring support for 4K resolutions at 60Hz and a flexible PVC jacket, this cable delivers exceptional picture quality, smooth refresh rates, and excellent value for everyday entertainment.

What’s Included:

(1) High-Speed HDMI Cable

Go to Product Page

Golf Simulator Experts

Call/Text 310-947-8670

Live Chat

Fast & Free Shipping

Enjoy fast and free shipping (exclusions apply) on products from leading manufacturers!

Price Match Guarantee

Find a competitor with a lower price and we will match or beat it, no questions asked!

Based in the U.S.A.

Expert level sales and support team proudly based in the U.S.A.

#1 Destination for Indoor Golf

Largest selection of indoor golf equipment from leading manufacturers.

The BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector is a powerful and user-friendly solution designed to elevate your indoor golf simulation experience.

With BenQ's Screen Fill technology, it seamlessly adjusts to various screen sizes and aspect ratios, ensuring a perfect fit every time. The specialized Golf Mode enhances color accuracy to deliver lifelike visuals of greens and terrain, immersing you fully into your game.

Equipped with a dustproof sealed engine and a durable laser light source, the AH500ST offers 4000 lumens of brightness and a 3,000,000:1 contrast ratio, delivering sharp, vivid images in any lighting condition. Its low-maintenance design and long-lasting laser technology ensure you can focus on your performance without worrying about upkeep.

What's Included:

BenQ AH500ST
Remote Control With Batteries
Power Cord
Quick Start Guide
Warranty Card
Lens Cover

Features

Automatic Screen Adjustment
The AH500ST automatically detects and adjusts to your impact screen's aspect ratio, supporting 16:9, 16:10, 4:3, and 1:1 formats for optimal resolution.

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector automatic screen adjustment.

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector automatic screen adjustment.

Quick Focus
Use the remote control's Focus button for precise image adjustments, ensuring sharp visuals.

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector quick focus.

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector quick focus.

Wireless Projection Ready
With an optional dongle, the AH500ST supports wireless projection from any device, eliminating the need for cables.

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector wireless projector ready.

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector wireless projector ready.

Safe Short-Throw Design
The 0.499 throw ratio allows safe placement behind the hitter, reducing collision risks and eliminating shadows.

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector short throw lens with golf simulator studio.

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector short throw lens with golf simulator studio.

Up to 200-Inch Display
Features a professional-grade motorized, allowing easy screen size adjustments without reinstalling.

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector 200 inch display

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector 200 inch display

Vibrant Visuals
With 4000 lumens of brightness, 83% Rec. 709 coverage, and high contrast, the AH500ST delivers stunning visuals in any lighting condition.

BenQ AH700ST with dark simulator studio lighting.

BenQ AH700ST with dark simulator studio lighting.

True-to-Life Golf Colors
The exclusive Golf Mode ensures authentic colors tailored for various golf course environments, enhancing the realism of your simulation.

BenQ AH700ST with projected images of golf courses.

BenQ AH700ST with projected images of golf courses.

Durable and Reliable
The IP5X dustproof sealed engine operates in temperatures ranging from 32-104°F, reducing the need for regular filter replacements.

BenQ AH500ST 4000 Lumen Short Throw 1080 Laser Golf Simulator Projector with dust particles and drop mount projector mount.

BenQ AH500ST 4000 Lumen Short Throw 1080 Laser Golf Simulator Projector with dust particles and drop mount projector mount.

Long-Lasting Laser Technology
Offers up to 20,000 hours of light source life, minimizing maintenance and replacement costs.

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector front view with durable laser technology.

BenQ AH500ST 4000-Lumen Short Throw 1080P Laser Golf Simulator Projector front view with durable laser technology.

What's Included

Included with Your Purchase:

BenQ AH500ST
Remote Control With Batteries
Power Cord
Quick Start Guide
Warranty Card
Lens Cover

Specifications

All Specifications

Display:

Brightness (ANSI lumens): 4000
Resolution: 1080P (1920×1080)
Native Aspect Ratio: 16:9
Selectable Aspect Ratios: 16:9, 16:10, 4:3, 1:1
Contrast Ratio (FOFO): 3,000,000:1
Display Color: 30-bit (1.07 billion colors)
Light Source: Laser
Light Source Life: Normal: 20,000 hrs, ECO: 38,000 hrs

Optical:

Throw Ratio: 0.499
Zoom Ratio: Fixed
Lens: F#=2.8, f=7.46mm
Projection Offset (Full-Height): 112%
Keystone Adjustment: 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees

Picture:

Rec. 709 Coverage: 83%
Picture Modes: 3D, Cinema, Game, Golf, HDR10, HLG, sRGB, User 1, User 2

Compatibility:

Input Lag (1080P 60Hz): 16.7 ms
Input Lag (1080P 120Hz): 8.3 ms
Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
Horizontal Frequency: 15K~102KHz
Vertical Scan Rate: 23~120Hz

I/O Interface:

HDMI In: HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2)
LAN (RJ45): (x1)
USB Type A: (x1), USB Type A-4 (2.0/Wireless Dongle)
USB Type Mini B: (x1), USB Type Mini B-1 (service)
RS232 In (DB-9pin): (x1)

Audio:

Speaker: (x1), 10W
Audio Out (3.5mm Mini Jack): (x1)

Environment:

Operating Temperature: 0~40℃
Power Supply: AC 100 to 240 V, 50/60 Hz
Typical Power Consumption (110V): 250W@110Vac
Stand-by Power Consumption: <0.5W
Network Stand-by Power Consumption: <2W
Acoustic Noise (Typ./Eco): 35/32 dB

Accessories:

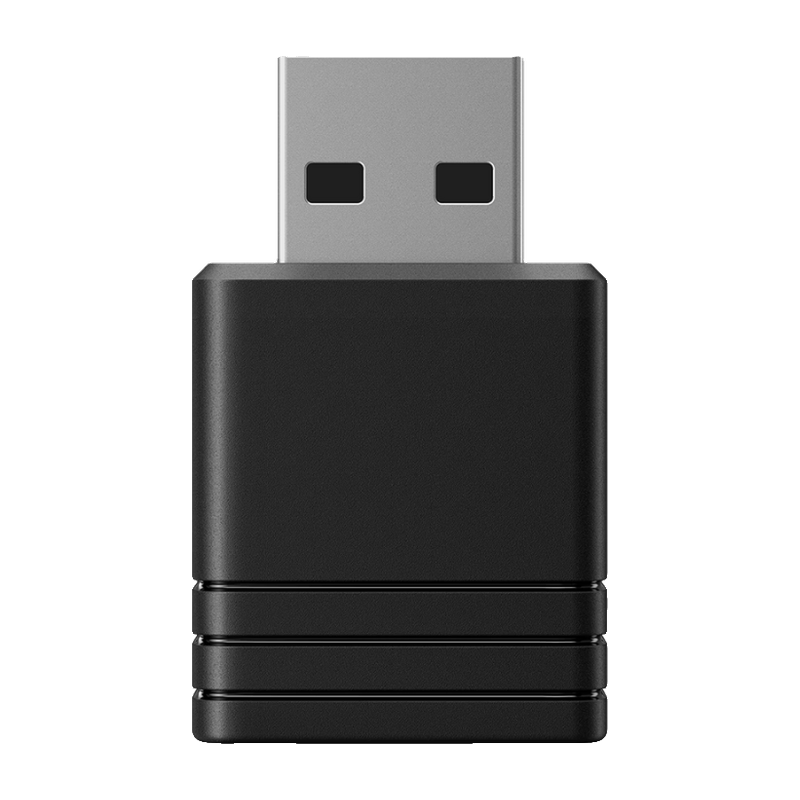

Wireless USB Dongle: 5201BS (Optional)
Remote Control with Battery: RCE018
Power Cord (by region): (x1), 3.0M
Quick Start Guide: (x1)
Warranty Card (by region): Yes
Lens Cover: Yes

Dimension & Weight:

Metric Dimensions (WxHxD): 320.0 x 130.6 x 255 mm
Imperial Dimensions (WxHxD): 12.6" x 5.1" x 10.0"
Metric Net Weight: 5.1 kg
Imperial Net Weight: 11.2 lbs

Projection System:

Projection System: DLP

Resources

Documents:

BenQ AH500ST User Manual
