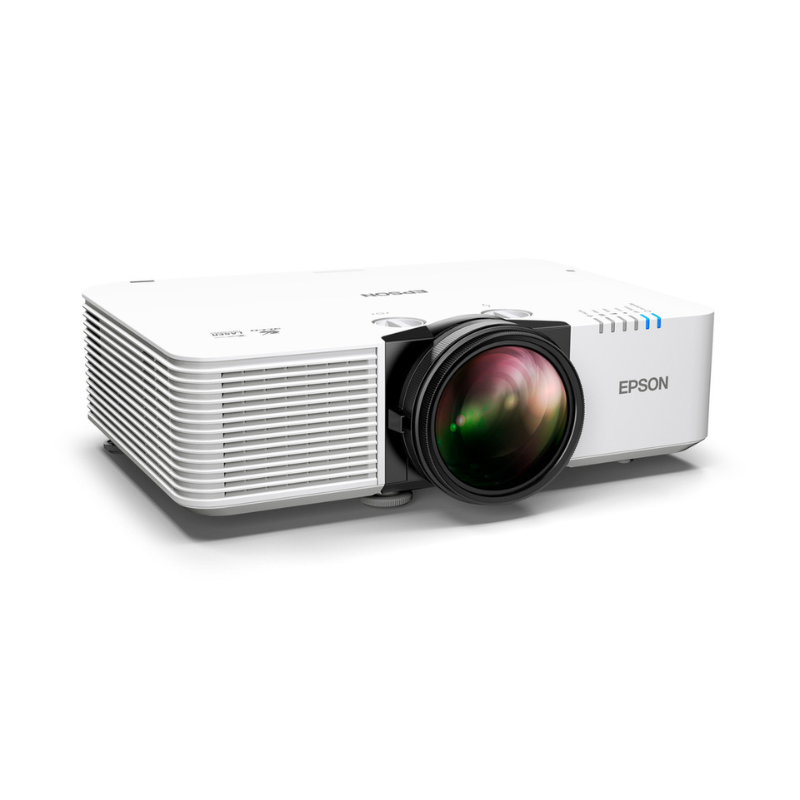

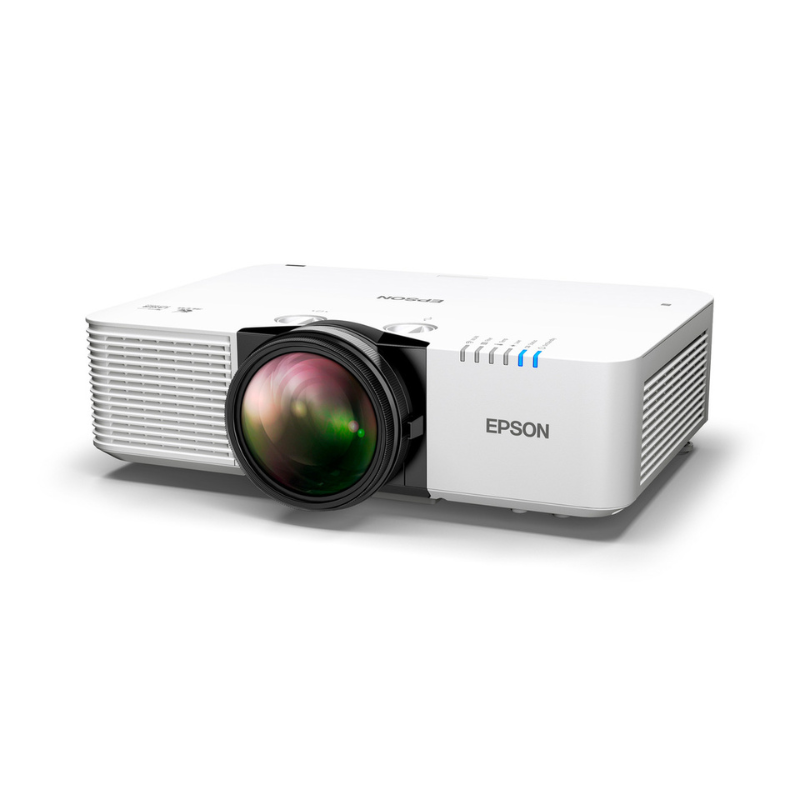

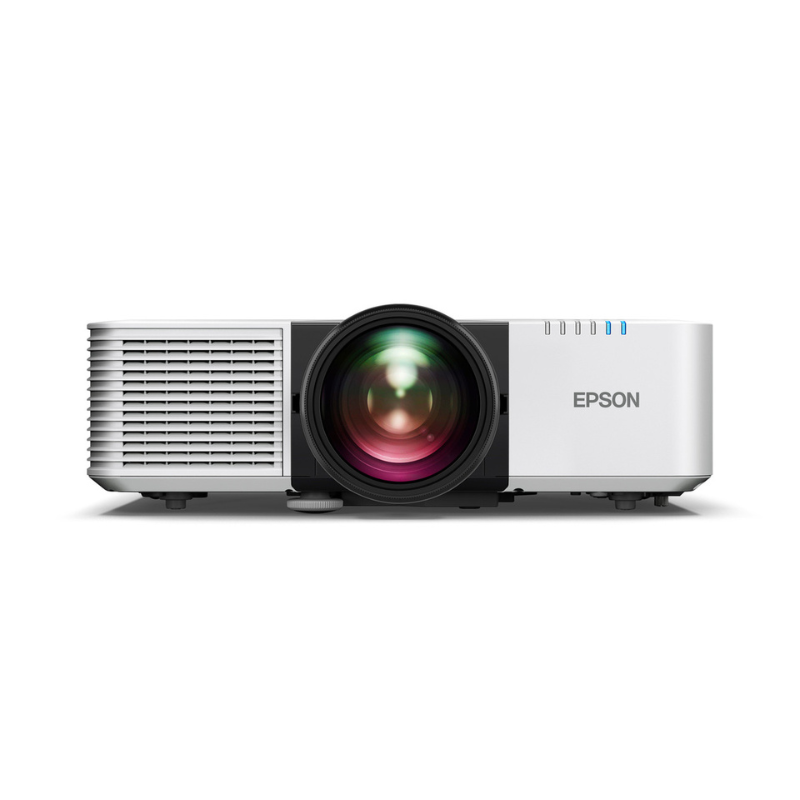

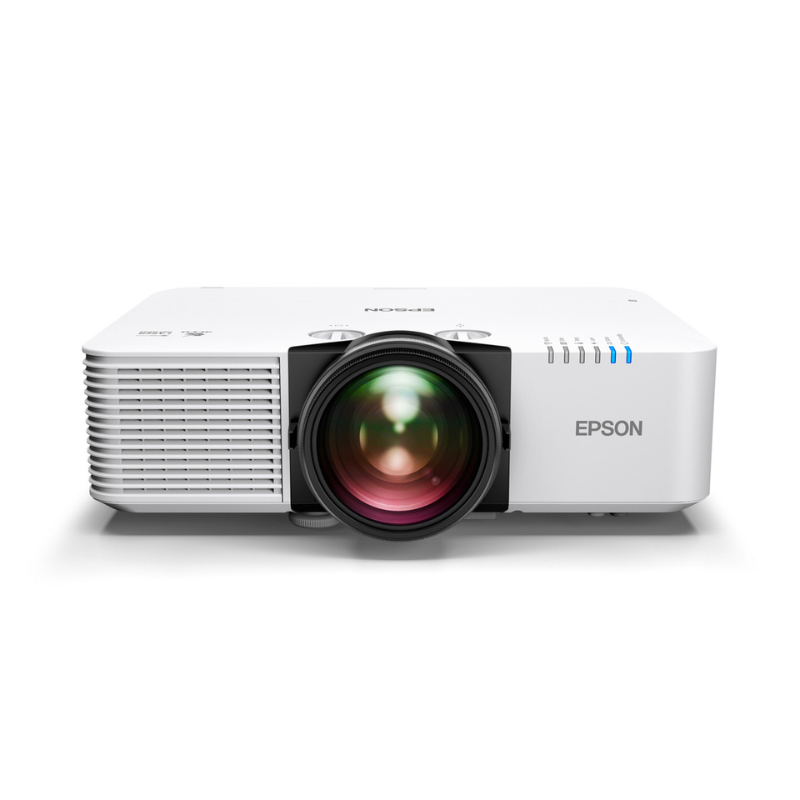

The Epson L690SE PowerLite 6000-Lumen 4K Short Throw 3LCD Laser Projector delivers bright, vivid images in any setting. With 6,000 lumens and advanced 3LCD technology, it ensures consistent color and clarity - even in well-lit rooms. Its WUXGA resolution with 4K Enhancement accepts 4K content for sharp, detailed visuals.
The short throw lens with 1.4x optical zoom enables large images from close range, ideal for flexible installations, floor or rear projection. The compact, lightweight design offers wide lens shift, 360° mounting, and easy geometric correction. The laser light source and air filter are virtually maintenance-free for up to 30,000 hours.
What's Included:
Bright, True-to-Life Images
Delivers 6,000 lumens of equal color and white brightness for stunning clarity, even in well-lit rooms.
WUXGA with 4K Enhancement Technology
Accepts 4K content and displays double HD resolution, producing a visibly sharper, more detailed picture at close viewing distances.
Short Throw Lens with Powerful Optical Zoom
Features a 0.5 – 0.7 throw ratio and 1.4x optical zoom to achieve large images from short distances - ideal for flexible installations.
Large, Versatile Display Options
Supports displays up to 500" diagonal in 16:10, as well as ultra wide 16:6 and 21:9 aspect ratios for enhanced visibility and content versatility.
Simplified Installation

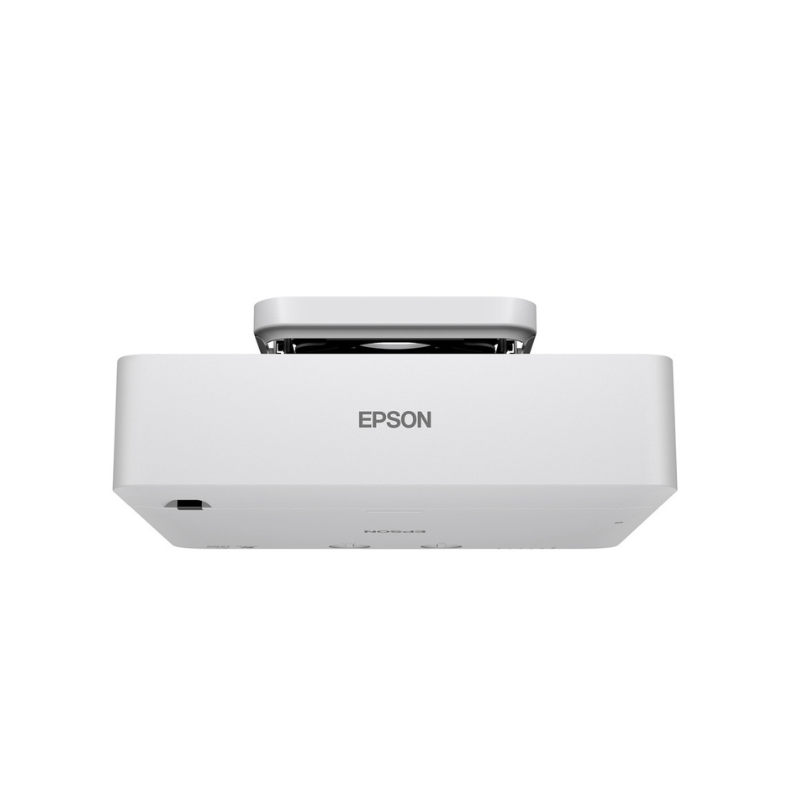

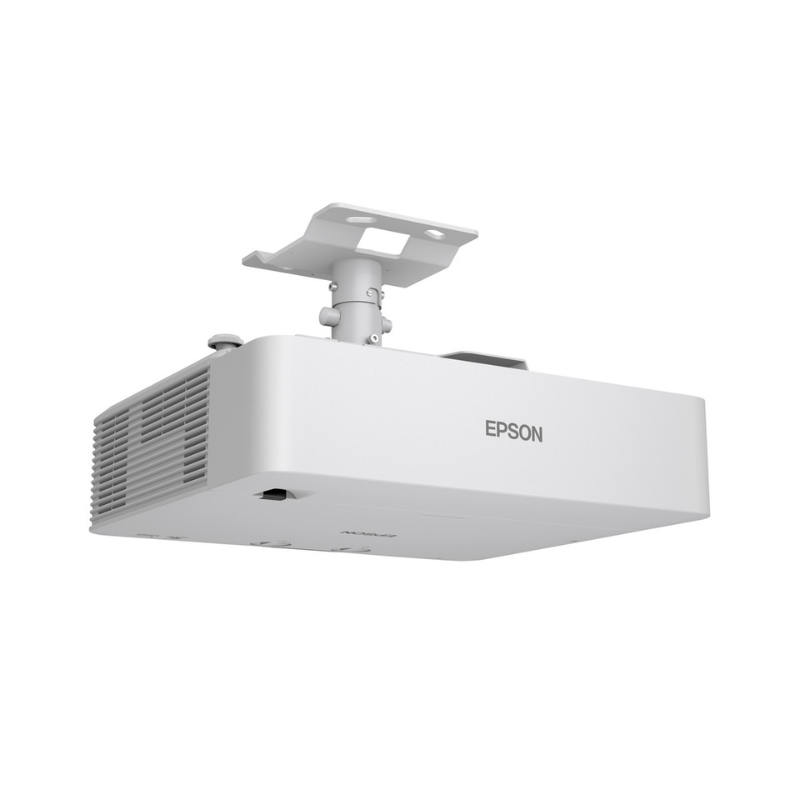

Compact and lightweight design with wide lens shift, 360-degree mounting, and built-in geometric correction tools for easy setup.
Low Maintenance Operation
Up to 30,000-hour virtually maintenance-free laser light source and air filter in Extended Mode.

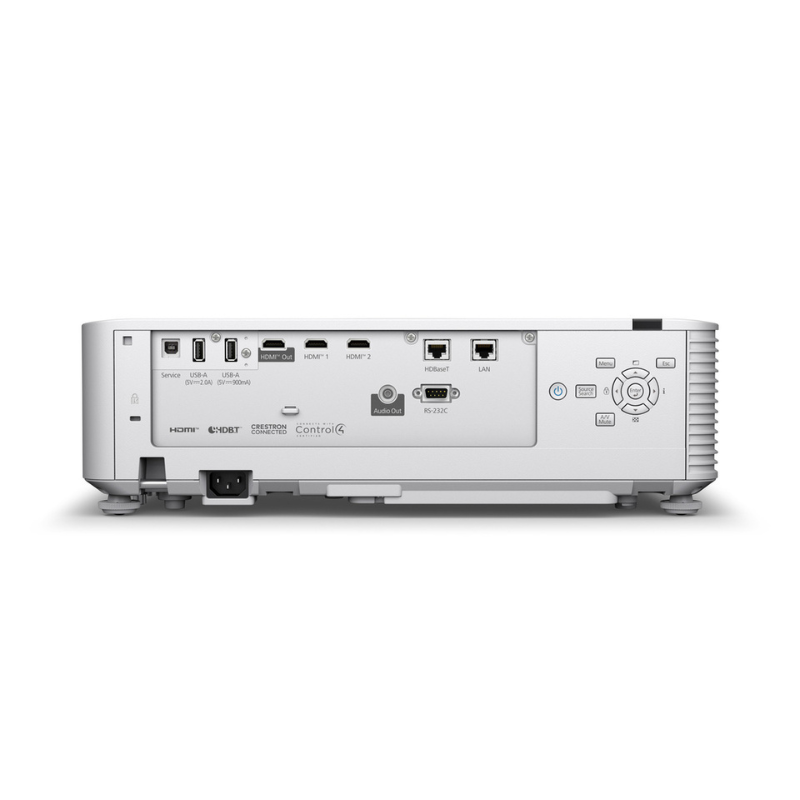

Advanced Connectivity
Includes HDBaseT and HDMI (two in, one out) for daisy-chaining, signal monitoring, and flexible integration.

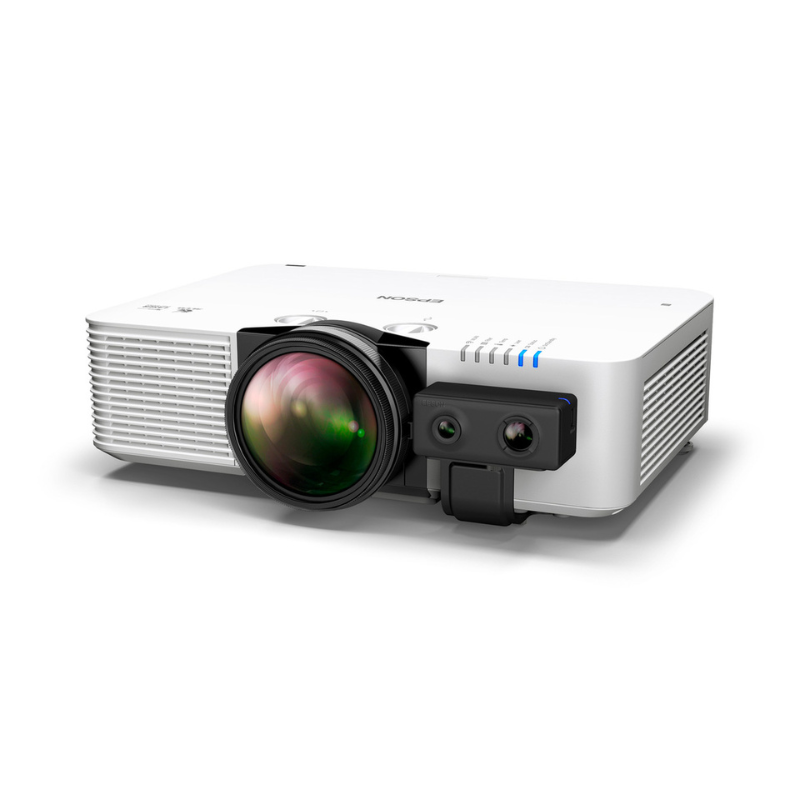

Optional Attachable PixAlign Camera
Adds powerful multi-projector tools like screen matching, auto color calibration, and blending assist for wide and stacked displays.
Built-in NFC and Over-the-Air Updates
Simplifies setup and maintenance with quick configuration and optional firmware update notifications.
Included with Your Purchase:
General Specifications:
Projection Lens (Short Throw):
Other Features:
Effective Scanning Frequency Range (Digital):
Dimensions:
Network and Remote Control Features:
Eco Features:
Interfaces:
Q: What is the difference between the PowerLite L695SE and L690SE projectors?
A: The only difference between the L695SE and L690SE is the color of the projector. The L695SE comes in black, while the L690SE comes in white. Both models have identical specifications and features.
Q: How large can the PowerLite L695SE or L690SE display?
A: Both projectors can create displays up to 500" diagonal with versatile aspect ratios, including 4:3, 16:10, 16:9*, 16:6*, 21:9*
* With vertical image shift control within letterbox area
Q: What is the expected lifespan of the laser light source?
A: The laser light source and air filter are designed to last up to 30,000 hours in Extended Mode for low-maintenance operation.
Q: Can these projectors be mounted at any angle?
A: Yes, both the PowerLite L695SE and L690SE support 360-degree installation, allowing for flexible mounting on walls, ceilings, or floors.
Q: Do the projectors support 4K content?
A: Yes, both models accept 4K content and display double HD resolution on-screen for sharp, detailed images.
Q: What connectivity options are available?
A: These projectors include HDBaseT, HDMI (two in and one out), USB, RS-232c, and RJ45 for comprehensive connectivity.
Q: What are some installation tools available?
A: Installation is streamlined with built-in NFC, wide lens shift, geometric correction tools, and the optional PixAlign camera for advanced multi-projector setups.
