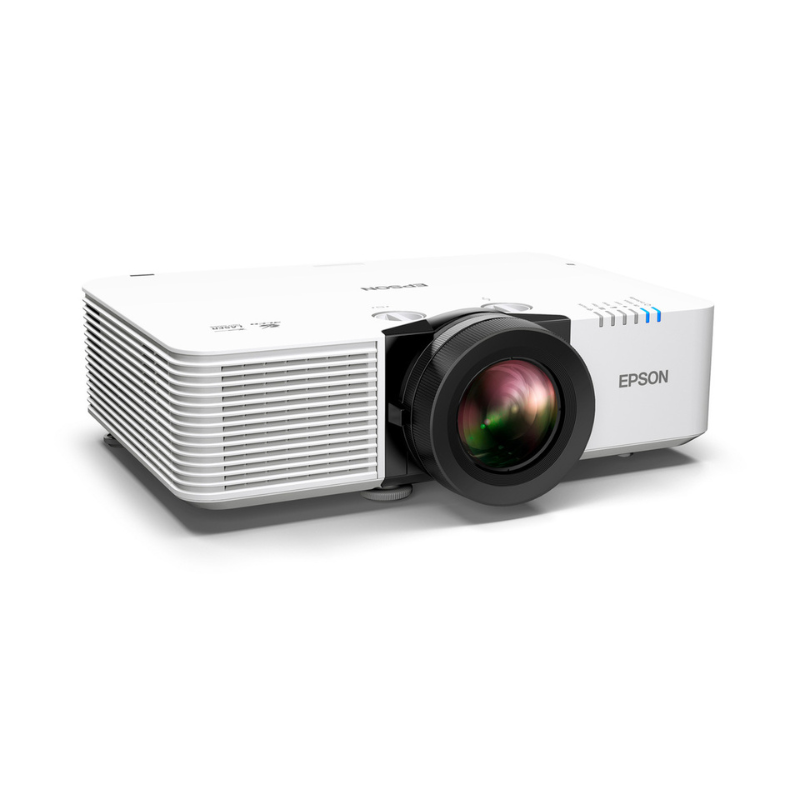

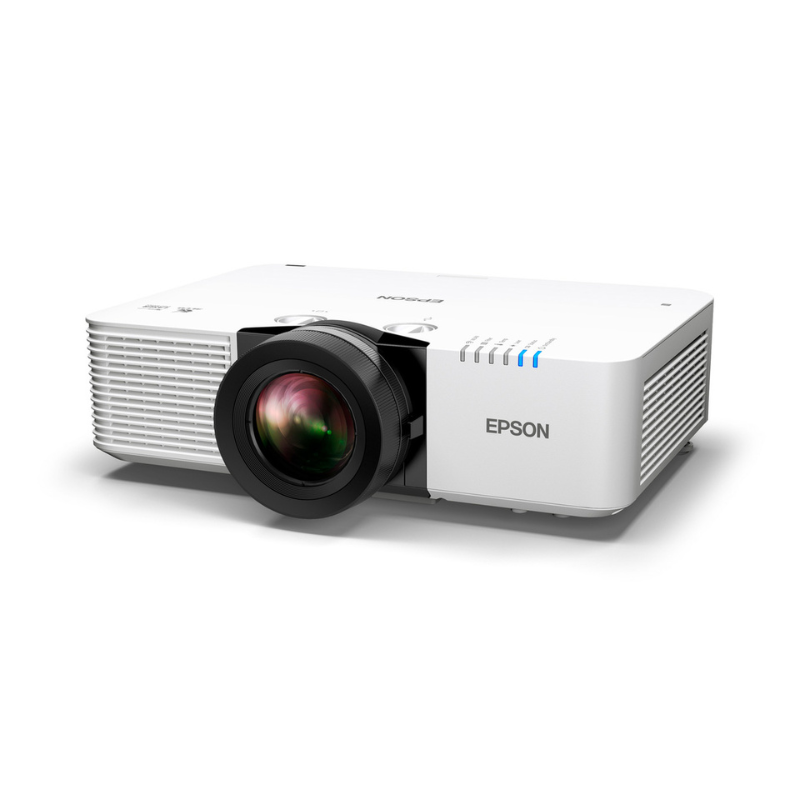

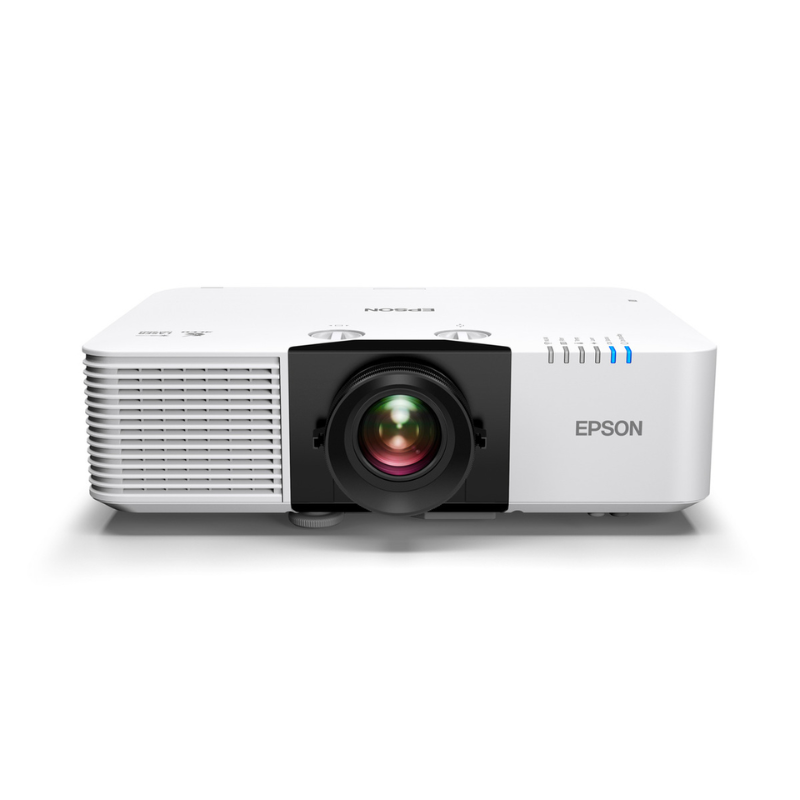

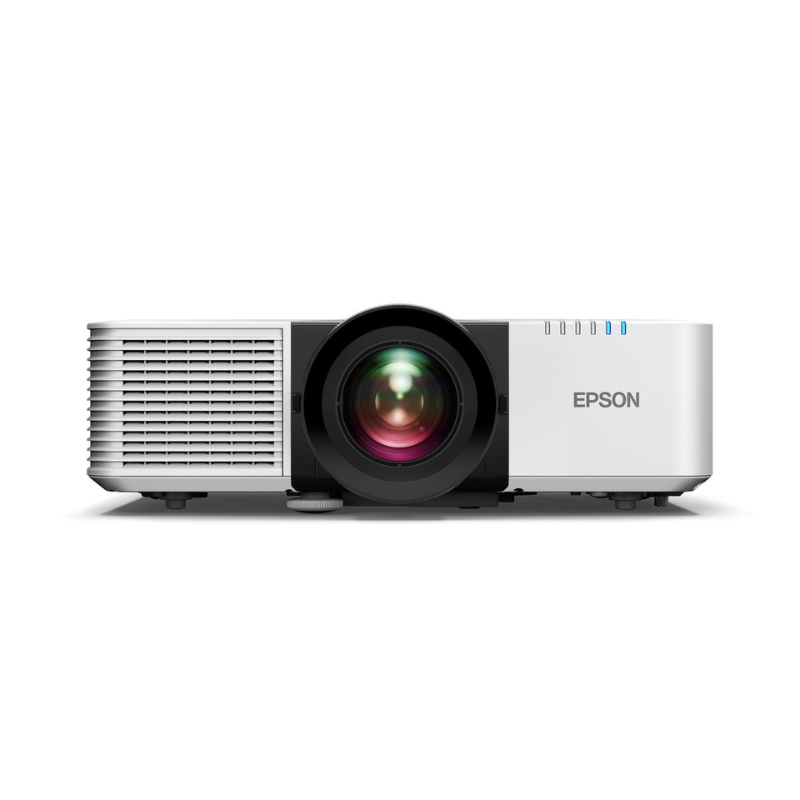

Epson L690E Powerlite 6500-Lumen WUXGA Normal Throw 3LCD Laser Projector with 4K Enhancement

The Epson L690E Powerlite 6500-Lumen WUXGA Normal Throw 3LCD Laser Projector with 4K Enhancement delivers high-impact visuals with advanced features for professional environments. Combining 6,500 lumens of equal color and white brightness with WUXGA resolution and 4K Enhancement Technology, it ensures detailed, ultra-bright images even in large and well-lit spaces. Display content up to 500" diagonal in 16:10, with additional ultra-wide 16:6 and 21:9 aspect ratios for flexible viewing in golf simulator setups, lecture halls, hybrid workspaces, and conference rooms.

Designed for maximum versatility, the compact and lightweight PowerLite L690E streamlines installation with wide lens shift, optical zoom, geometric correction, and universal VESA mounting. The virtually maintenance-free 30,000-hour laser light source and air filter provide reliable performance over years of use. Stay connected and in control with built-in Wi-Fi 6/6E, Apple AirPlay 2, Miracast, and Epson iProjection, as well as remote fleet management via the Epson Projector Management Connected app.

What's Included:

• Epson L690E Powerlite 6500-Lumen WUXGA Normal Throw 3LCD Laser Projector with 4K Enhancement
• Power Cable
• Projector Remote Control With Batteries
• Quick Reference Card
• Cable Cover

Features

Exceptional 6,500-Lumen Brightness
Deliver presentations and video in vibrant color and clarity, even in large, bright spaces.

WUXGA with 4K Enhancement
Accepts 4K content and doubles on-screen HD video resolution for sharper, more detailed images.

Expansive Display Capability
Easily achieve displays up to 500" diagonal in standard 16:10 and ultra-wide aspect ratios for maximum visibility and impact.

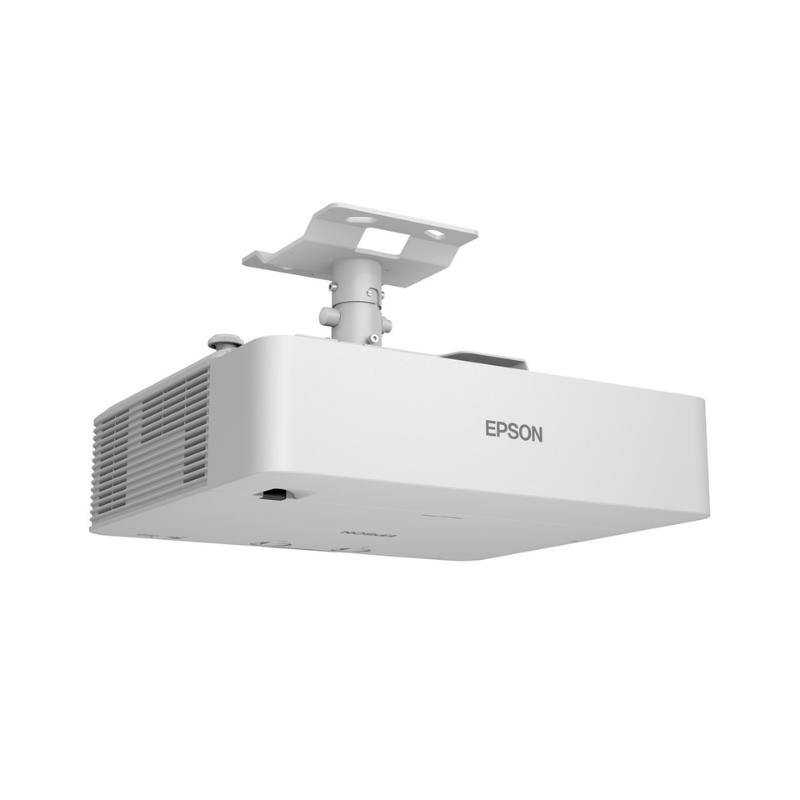

Professional-Grade Installation Flexibility
Wide lens shift, 1.6x optical zoom, geometric correction, 360-degree mounting, and compact size simplify setup in any environment.

Virtually Maintenance-Free Operation
Enjoy up to 30,000 hours of reliable, low-maintenance performance with the laser light source and air filter in Extended Mode.

Advanced Wireless Connectivity
Wi-Fi 6/6E provides fast and secure wireless screen casting; Apple AirPlay 2, Miracast, and Epson iProjection make sharing easy.

Powerful Multi-Projector Tools

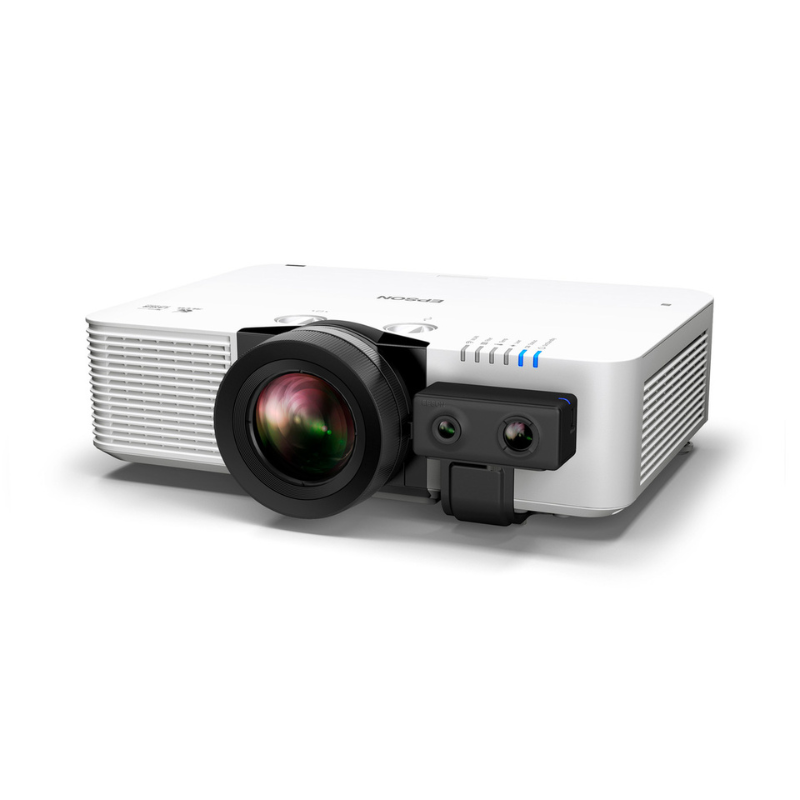

Add the optional PixAlign camera for advanced functions like screen matching, color calibration, blending assist, and stacking.

Smart Management and Updates
Monitor, control, and update projectors remotely via web browser or the Epson Projector Management Connected app.

Eco-Friendly Features
RoHS compliance, end-of-life options, and manufacturing powered by renewable electricity support a lower environmental impact.

What's Included

Included with Your Purchase:

• Epson L690E Powerlite 6500-Lumen WUXGA Normal Throw 3LCD Laser Projector with 4K Enhancement
• Power Cable
• Projector Remote Control With Batteries
• Quick Reference Card
• Cable Cover

Specifications

General Specifications:

• Projection System: RGB Liquid Crystal Shutter Projection System
• Projection Method: Front/Rear/Ceiling Mount
• LCD Size: 0.67" (C2 Fine)
• Driving Method: Poly-Silicon TFT Active Matrix
• Pixel Number: 2,304,000 Dots (1920 x 1200) x 3
• Native Resolution: WUXGA With 4K Enhancement (1920 x 1200 x 2)
• Resolution On-Screen: WUXGA With 4K Enhancement / 4.6 Million Pixels
• Resize: 640 x 480, 800 x 600, 1280 x 1024, 1400 x 1050
• Aspect Ratio: 16:10
• Pixel Arrangement: Cross Stripe
• Color Brightness: Color Light Output: 6,500 Lumens
• White Brightness: White Light Output: 6,500 Lumens
• Contrast Ratio: Over 5,000,000:1
• Brightness Uniformity (Typical): 88%
• Color Reproduction: Up to 1.07 Billion Colors
• Size (Projected Distance): 50" – 500"
• Projected Distance (80" Screen): 2.33 M – 3.78 M
• Lens Shift (Manual): Vertical: ±50%; Horizontal: ±20%
• Keystone Correction: Vertical: ±30 Degrees; Horizontal: ±30 Degrees
• Light Source: Laser Diode
• Laser Light Source Life: Normal: 20,000 Hours; Quiet: 20,000 Hours; Extended: 30,000 Hours

Projection Lens (Standard):

• Type: Optical Zoom (Manual)/Focus (Manual)
• F-Number: 1.5 – 1.7
• Focal Length: 20.0 Mm – 31.8 Mm
• Zoom Ratio: 1.0 – 1.6x (Optical)
• Throw Rate Range: 1.35 – 2.20 (Optical)
• Lens Cover: Lens Cap (Without String)

Wireless Specifications:

• Frequency Type (Modulations): 802.11B/G/N/Ac/Ax (2.4 GHz)
• Supported Security Type: Quick Mode: Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP; Advanced Mode: WPA/WPA2-PSK, WPA/WPA2-EAP

Other Features:

• Operating Temperature: 32 ˚F To 113 ˚F (0 ˚C To 45 ˚C)
• Power Supply Voltage: 100 V – 240 V ± 10%, 50/60 Hz AC
• Auto Power On: Signal Detection On HDMI/Plug-In Detection
• Sleep Mode: Yes (With Timer)
• HDMI CEC Control: Yes
• Power Consumption: 415 W (Normal Mode), 305 W (Quiet And Extended), 2.4 W (Standby Comm On), 0.3 W (Standby Comm Off)

• Fan Noise: 32 dB (Normal Mode); Max. 25 dB (ECO Mode)
• Security: Security Cable Hole, Kensington Lock Provision
• A/V Mute: Yes
• Miracast: Yes
• Epson iProjection: Yes (V4)
• Apple AirPlay 2: Yes

• Split Screen: Yes (Up to 2 Screens)
• Camera: Optional
• Speaker(s): 10 W (Mono)
• Content Playback: Yes
• Quick Corner: Yes
• Corner Wall: Yes
• Curved Surface: Yes
• Edge Blending: Yes
• Screen Sharing: Yes

Effective Scanning Frequency Range (Digital):

• Pixel Clock: 25.1 MHz – 594 MHz
• Horizontal: 26 kHz – 135 kHz
• Vertical: 23.98/24/25/29.97/30/50/59.94/60 Hz

Dimensions (W x D x H):

• Excluding Feet: 17.32"W x 11.97"D x 4.80"H
• Including Feet: 17.32"W x 13.39"D x 5.43"H
• Weight: 18.1 Lb

Network and Remote Control:

• Features: Power, Source Search Selection, A/V Mute, Number Input, Menu, Esc, Select, Freeze, ID, Customize, E-Zoom, Mute, Volume, Playback Control And Pointer Functions
• Operating Angle: Rear: Right/Left: -55 To +55 Degrees; Upper/Lower: +75 To +15 Degrees; Front: Right/Left: -30 To +30 Degrees; Upper/Lower: 0 To +60 Degrees
• Operating Distance: 26 Ft (8 M)
• Network Control: PJLink, Crestron Integrated Partner, Crestron Connected V2 With XiO Cloud, Extron IP Link, Extron XTP, AMX, Control4

Eco Features:

• RoHS Compliant
• End-Of-Life Options Available
• Epson America, Inc. Is A SmartWay Transport Partner
• Design And Manufacturing Centers Utilize 100% Renewable Electricity
• Dynamic Contrast (ECO) Mode Reduces Power Consumption By 36%

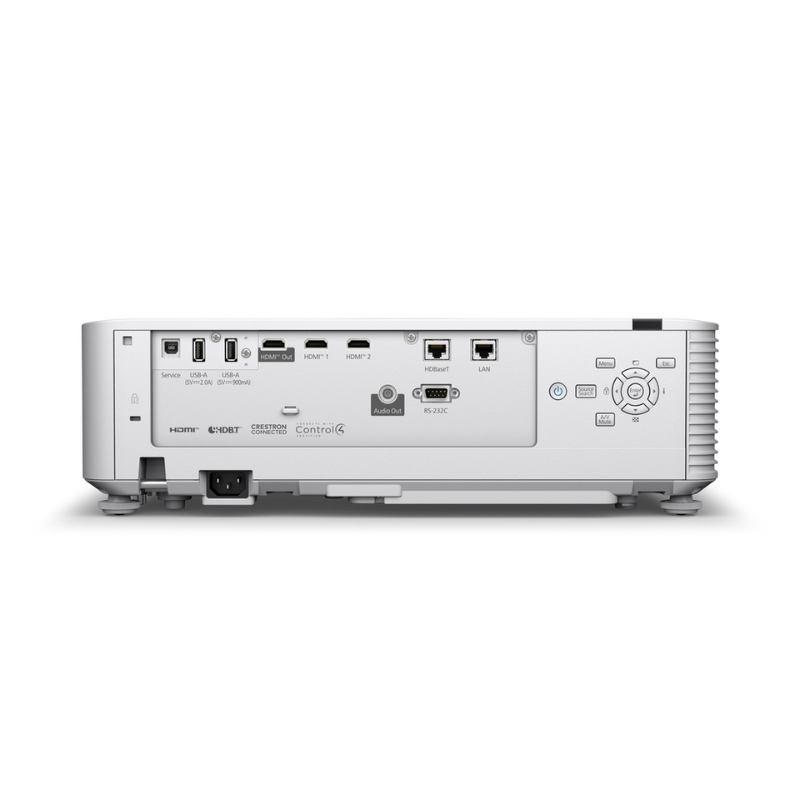

Interfaces:

• (2) HDMI (HDCP 2.3)
• (1) HDMI Out
• (1) HDBaseT
• (1) Variable Audio Out: Mini Stereo
• (1) USB Connector Type-A
• (1) USB Connector Type-B
• (1) Serial: RS-232C
• (1) Wired LAN RJ45
• Wireless LAN: Built-In

FAQ

Q: What is the advantage of 4K Enhancement Technology?
A: 4K Enhancement Technology accepts 4K content and displays double HD video resolution for sharper, more detailed images—even up close.

Q: How large of a display can this projector achieve?
A: The PowerLite L690E can create displays up to 500" diagonal in 16:10, and also supports ultra-wide 16:6 and 21:9 aspect ratios.

Q: What is the expected life of the laser light source?
A: In Extended Mode, the laser light source and air filter provide up to 30,000 hours of virtually maintenance-free operation.

Q: What wireless features are included?
A: Built-in Wi-Fi 6/6E, Apple AirPlay 2, Miracast, and Epson iProjection enable secure, fast, and flexible wireless screen sharing.

Q: Can this projector be used in multi-projector setups?
A: Yes, with the optional PixAlign camera, users can access screen matching, auto color calibration, blending assist, and stacking tools for seamless multi-projector installations.

Q: What installation flexibility does it offer?
A: The projector features wide vertical and horizontal lens shift, 1.6x optical zoom, geometric correction, and universal VESA mounting for simple and versatile setup.

Q: What’s included with my purchase?
A: The projector, power cable, remote control with batteries, quick reference card, and cable cover are included.

Resources

Documents:

• Epson L690E Specifications Sheet
