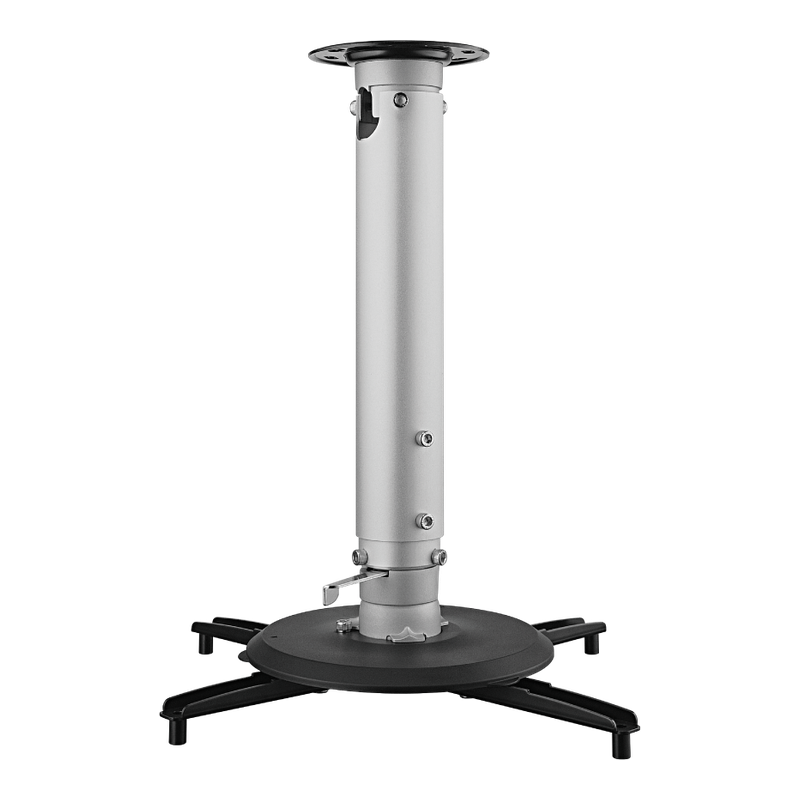

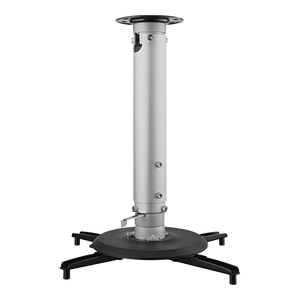

BenQ CM00G3 Universal Projector Ceiling Mount

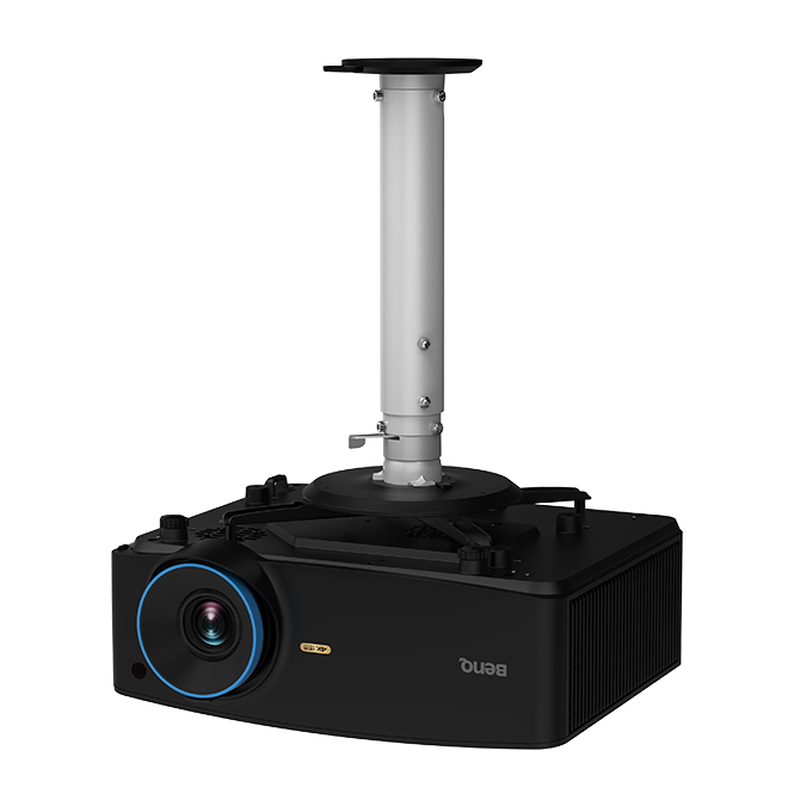

The BenQ CM00G3 Universal Projector Ceiling Mount is BenQ's own first-party ceiling mount, built to hang a short throw golf simulator projector overhead and clear of the swing path. Steel and aluminum alloy construction supports projectors up to 55.1 lbs, with 360° rotation and ±25° tilt so the image can be squared to your impact screen without repositioning the mount.

Drop length adjusts from 15.9" to 22.7" in 1" increments, or the projector can sit flush at 5" below the ceiling where headroom is tight. The universal arms fit BenQ's standard mounting patterns and accept M3, M4, M5 and M6 projector screws.

Because this is BenQ's own mounting kit, it keeps the projector's factory warranty intact. BenQ's projector manuals state that the warranty does not cover damage caused by mounting a projector with a non-BenQ mounting kit.

What's Included:

• BenQ CM00G3 Universal Projector Ceiling Mount

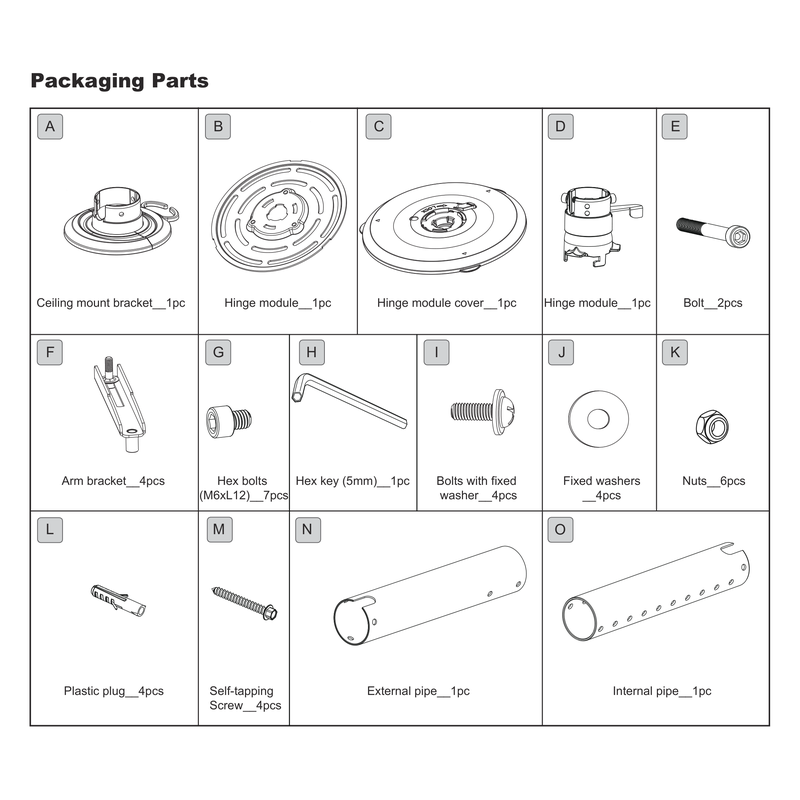

• Mounting Hardware (Bolts, Washers, Nuts, Plastic Plugs, Self-Tapping Screws and 5 mm Hex Key)
• Installation Manual

Please Note: A signature is required to take delivery of this item. Please make sure someone is available to sign for the package on the delivery date. If no one is available to sign, the carrier will hold the package at a local pickup location.

Features

Holds Up To 55.1 lbs
Rated for projectors up to 55.1 lbs (25 kg), which covers every short throw projector in BenQ's golf simulator range with room to spare.

360° Rotation and ±25° Tilt
Full rotation plus 25 degrees of tilt in either direction lets you align the projected image to the screen precisely, rather than moving the mount.

Adjustable Drop Length

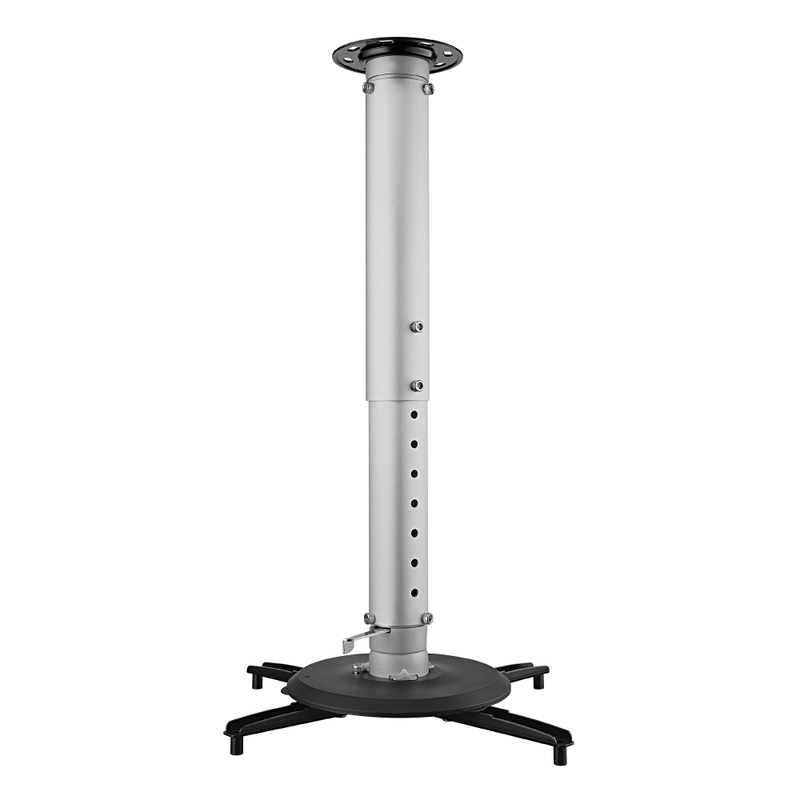

Telescopes from 15.9" to 22.7" in 1" increments for standard ceilings, or mounts flush at 5" for low rooms and basements.

Universal Fitment
Fits projectors with mounting holes up to 11.8" x 9.8", or within a 15" diameter. The arms adjust to the projector's mounting points and unused arms can be left off.

First Party BenQ Hardware
Designed by BenQ for BenQ projectors, so mounting does not put the projector's warranty at risk.

What's Included

Included with your purchase:

• BenQ CM00G3 Universal Projector Ceiling Mount
• Mounting Hardware (Bolts, Washers, Nuts, Plastic Plugs, Self-Tapping Screws and 5 mm Hex Key)
• Installation Manual

Compatible Projectors

Verified against BenQ's published specifications and mounting diagrams:

• BenQ AK700ST
• BenQ AH700ST
• BenQ AH500ST
• BenQ AH30ST
• BenQ AW30ST
• BenQ TH671ST
• BenQ TK700ST
• BenQ TK710STi
• BenQ TK710
• BenQ LH600ST
• BenQ LH820ST
• BenQ LH860ST
• BenQ LK830ST
• BenQ LK935
• BenQ LK936ST
• BenQ LU710
• BenQ LU935
• BenQ LU935ST
• BenQ X500i

Please Note: Screw length differs between projector models. Most BenQ short throw projectors take M4 x 8 mm, several take M4 at 20 mm to 25 mm, and the BR9708 accepts only 8 mm to 11 mm. Check your projector's manual for the correct screw length before installation. The BenQ LU9800 exceeds this mount's weight rating and requires a heavy duty mount instead.

Specifications

Capacity:

• Load Capacity: 55.1 lbs (25 kg)

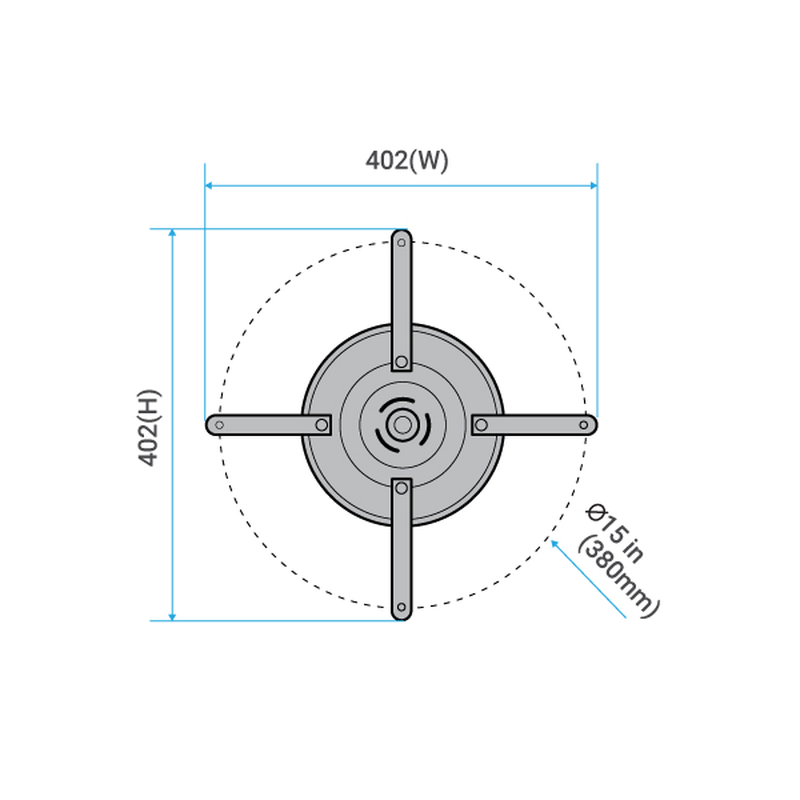

• Compatible Hole Pattern: up to 11.8" (L) x 9.8" (W), within a 15" (380 mm) diameter
• Compatible Screws: M3, M4, M5, M6

Adjustment:

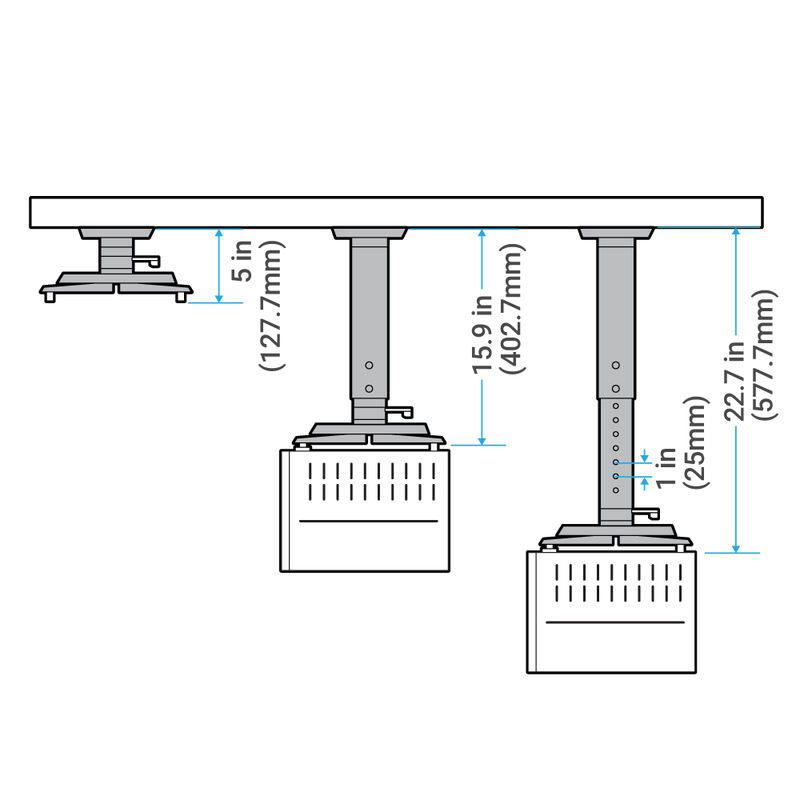

• Drop Length: 5" (127.7 mm) flush, or 15.9" (402.7 mm) to 22.7" (577.7 mm) in 1" increments
• Rotation: 360°
• Tilt: ±25°

Physical:

• Material: Steel and Aluminum Alloy
• Color: Silver Drop Pole with Black Ceiling Plate and Arms
• Mount Weight: 3.88 lbs (1.76 kg)
• Manufacturer Part Number: 5J.JAM10.001

Warranty:

• 90-Day Limited Manufacturer Warranty
