BenQ LU935 6000 Lumens Normal Throw Laser Golf Simulator Projector

Long-Lasting Image Quality
The BenQ LU935 is designed to deliver exceptional image quality with a DLP chip that is hermetically sealed to withstand heat for over 20,000 hours without degradation. BenQ's proprietary DLP high brightness laser technology coupled with 6000 lumens of brightness will allow you to create the ultimate golf simulator studio images on your impact screen.



Large H/V Lens Shift and 1.6X Zoom
Perfect for in-house golf simulator studio installations, the LU935 offers extensive lens shift options and a 1.6X zoom, making it adaptable to your space. Easily switch from WUXGA into 1080P through display resolution switch function to increase the compatibility with 16:9 screens. Adjust the image up to 60% vertically and 23% horizontally for perfect alignment, even in challenging installation scenarios.

IP5X Dustproof Mechanism
Experience reduce maintenance costs with the LU935's IP5X dustproof mechanism, keeping your projector clean and reliable. The LU935 features BenQ's DustGuard Pro Technology that effectively eliminates color wheel sensor failure while protecting the DMP chip, laser module, and other optical components.

Laser-Enabled Ultra-High Contrast
With a contrast ratio of 3,000,000, the LU935 creates strikingly clear images with deep blacks, rich colors, and fine details, ensuring flexible and responsive performance. The LU935 offers spontaneous response, eliminating the need for wait times when turning on or resuming from blanking, ensuring flexible and seamless performance in true black.

• BenQ LU935: x1
• Remote Control with Battery
• Power Cord
• Installation Guide
• Warranty Card

All Specifications

Display:

• Brightness (ANSI lumens): 6000
• Native Resolution: WUXGA (1920x1200)
• Native Aspect Ratio: 16:10
• Contrast Ratio (FOFO): 3,000,000:1
• Display Color: 30-bit (1.07 billion colors)
• Light Source: Laser
• Light Source Life: 20000 hrs

Optical:

• Throw Ratio: 1.36-2.18
• Zoom Ratio: 1.6x
• Lens: F/# = 1.81 ~ 2.1,f = 14.3 ~ 22.9 mm
• Projection Offset (Full-Height): 0%
• Keystone Adjustment: 2D, Vertical ± 30 degrees; Horizontal ± 30 degrees
• Lens Shift Vertical: -60%~ +60%
• Lens Shift Horizontal: -23%~ +23%

Picture:

• Rec. 709 Coverage: 92%
• Picture Modes: 3D, Bright, Golf, Infographic, Presentation, sRGB, User 1, User 2, Vivid

Compatibility:

• Input Lag: 33.4 ms (1080P 60Hz)
• Resolution Support: VGA (640 x 480) to 4K UHD (3840 x 2160)
• Horizontal Frequency: 15K~102KHz
• Vertical Scan Rate: 23~120Hz

I/O Interface:

• PC in (D-sub 15pin): (x1), PC in-1
• Monitor out (D-sub 15pin): (x1)
• HDMI in: (x2), HDMI-1 (2.0a/HDCP2.2), HDMI-2 (2.0a/HDCP2.2)
• LAN (RJ45): (x1)
• HDBaseT (RJ45): (x1), Video/Audio
• 3D Sync in: (x1)
• 3D Sync out: (x1)
• USB Type A: (x1), USB Type A-1 (2.0/Power Supply1.5A)
• RS232 in (DB-9pin): (x1)
• Wired Remote in (3.5mm Mini Jack): (x1)
• DC 12V Trigger (3.5mm Jack): (x1)

Audio:

• Speaker: (x2), 10W
• Audio in (3.5mm Mini Jack): (x1)
• Audio out (3.5mm Mini Jack): (x1)

Environment:

• Operating Temperature: 0~40℃
• Power Supply: AC 100 to 240 V, 50/60 Hz
• Typical Power Consumption (110V): 440W
• Stand-by Power Consumption: <0.5W
• Network Stand-by Power Consumption: <2W

Accessories:

• Remote Control w/ Battery: RCA011
• Power Cord (by region): x1 (1.8M)
• 3D Glasses: (Optional), DGD5
• Installation Guide: 1 (8L)
• Warranty Card (by region): Yes

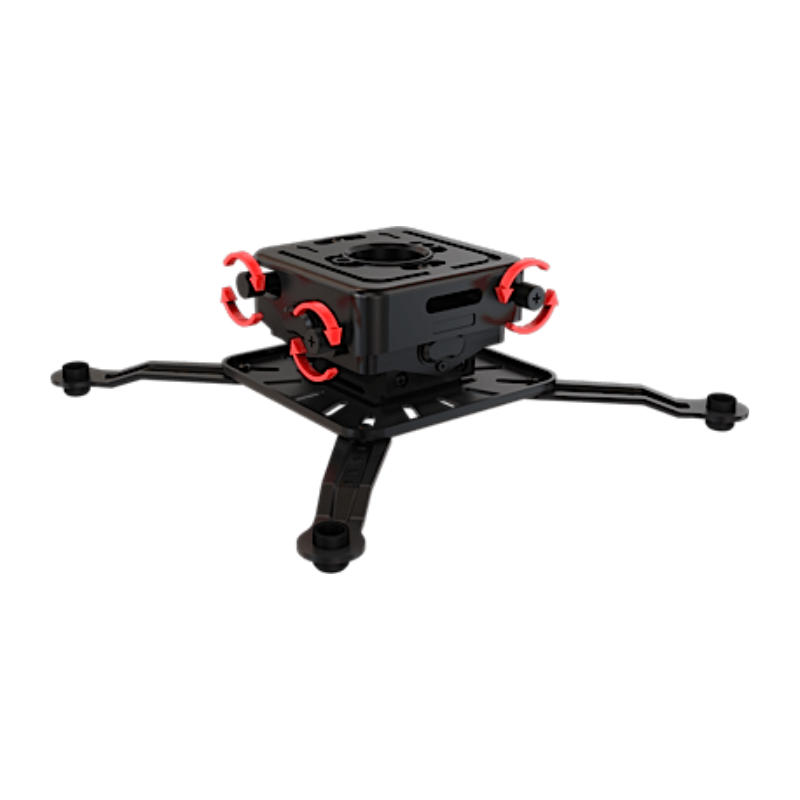

• Universal Ceiling Mount: (Optional), CM00G3

Dimension & Weight:

• Dimensions (WxHxD) (mm): 416x166 x 351 mm
• Net Weight (kg): 7

Projection System:

• Projection System: DLP

BenQ LU935 User Manual
