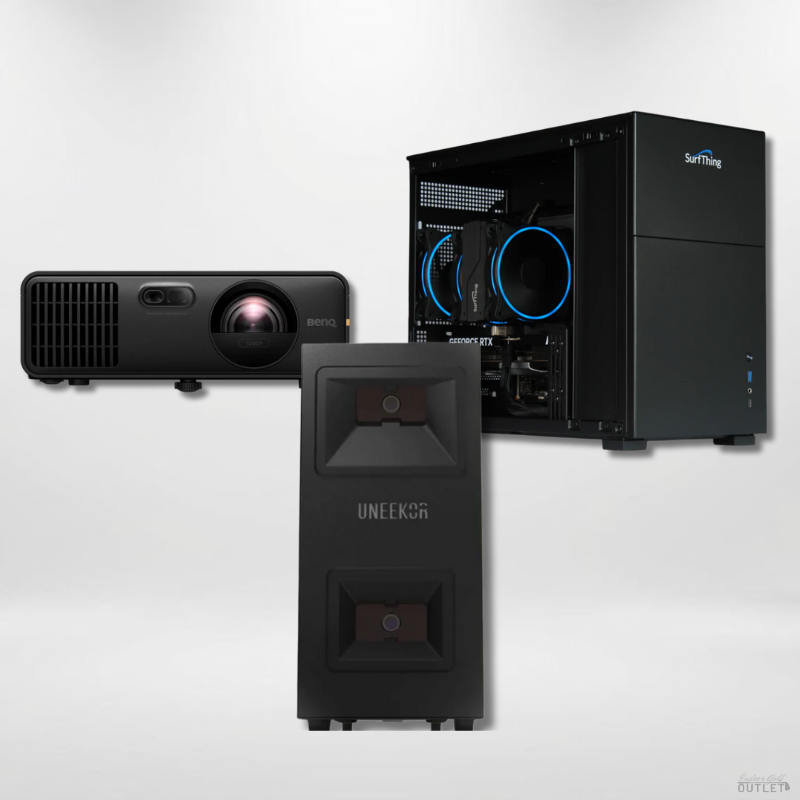

The Uneekor EYE MINI LITE Launch Monitor Projector Golf Simulator Computer Package is a flexible technology package designed to let golfers build the ideal simulator experience at the right performance level. This package includes the Uneekor EYE MINI LITE Launch Monitor, along with your choice of projector and golf simulator computer, allowing you to tailor performance, resolution, and overall technology to your space and goals.
The EYE MINI LITE captures 19 ball and club metrics and seamlessly integrates with Uneekor's Refine+ software and Gameday systems, as well as third-party software.
Setting up your golf simulator has never been easier – simply connect the EYE MINI LITE to your PC, and you're instantly poised to immerse yourself in comprehensive practice and a full golf simulation experience, all straight out of the box.
What's Included:
- Uneekor EYE MINI LITE Launch Monitor
- 3 Month Ultimate Package Trial
- Choice of BenQ AH700ST, BenQ AH500ST, BenQ AK700ST, BenQ LK936ST, or LG ProBeam BU53RG Projector
- Choice of SurfThing SG3-5602, SurfThing SG3-5702, SurfThing SG3-5702Ti, SurfThing SG3-5802, or SurfThing M3H Golf Simulator Computer
Uneekor EYE MINI LITE Features
Seamless Access to Complete Golf Simulation
Embark on a multitude of golf experiences at world-class courses at your own pace with Uneekor software. Whether you are utilizing Uneekor's sophisticated Refine+ and Gameday systems or seamlessly incorporating classics like GSPRO, an abundance of world-class courses eagerly await your exploration.
Rooted in Design, Soaring in Features
EYE MINI LITE combines precision with an array of advanced technologies. Capture intricate club impact details anywhere with Club Optix, delve into comprehensive data analysis with Uneekor View, and effortlessly refine your swing with unparalleled ease.
Perfect Your Craft, Perfect Your Metrics
Enhance your gameplay with precision using EYE MINI LITE. Transform each swing into tangible data, pinpointing the subtleties of your technique with the unmatched accuracy synonymous with Uneekor. Unleash the potential of every drive, chip, and putt as you meticulously track and analyze your progress.
Established Innovation: More than 15 Years of Elevated Golf Technology
With a legacy of nearly two decades of continuous innovation, Uneekor remains unparalleled in overhead golf simulation technology. Opt for EYE MINI LITE and become part of the lineage of golfers who expect nothing less than excellence.
What's Included
Included with Your Purchase:
- Uneekor EYE MINI LITE Launch Monitor
- 3 Month Ultimate Package Trial
- Choice of BenQ AH700ST, BenQ AH500ST, BenQ AK700ST, BenQ LK936ST, or LG ProBeam BU53RG Projector
- Choice of SurfThing SG3-5602, SurfThing SG3-5702, SurfThing SG3-5702Ti, SurfThing SG3-5802, or SurfThing M3H Golf Simulator Computer
What's Measured
Uneekor EYE MINI LITE Metrics
Ball Data Measured:
- Ball Speed
- Launch Angle
- Back Spin
- Side Spin
- Side Angle
- Side Distance
- Carry Distance
- Angle of Descent
- Flight Time
- Spin Axis
- Distance to Apex
- Apex
- Ball Flight Type
- Run
- Total Distance
Club Data Measured:
- Club Speed
- Attack Angle
- Smash Factor
- Club Path
Specifications

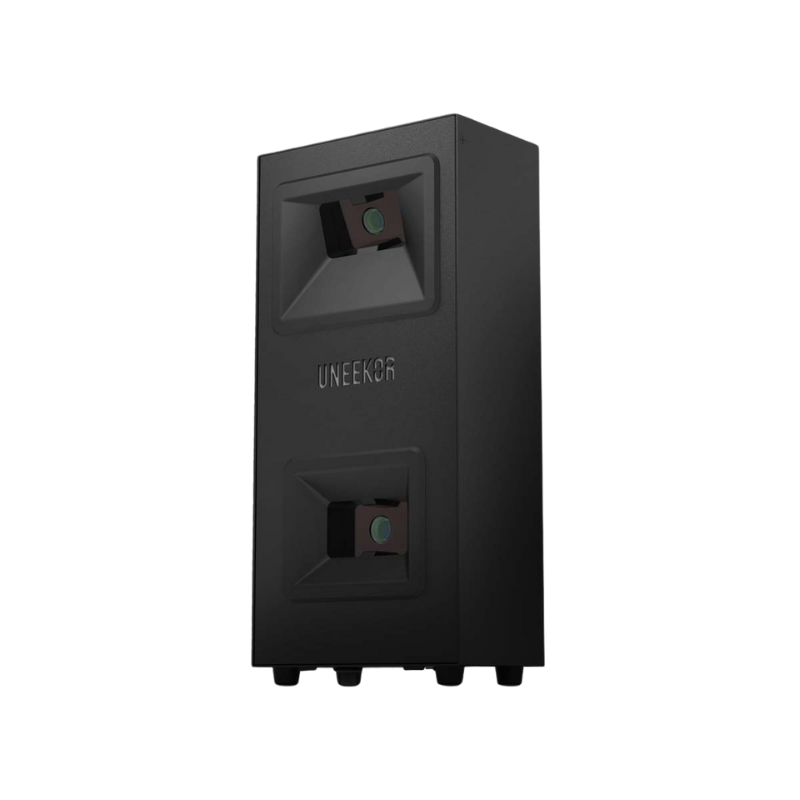

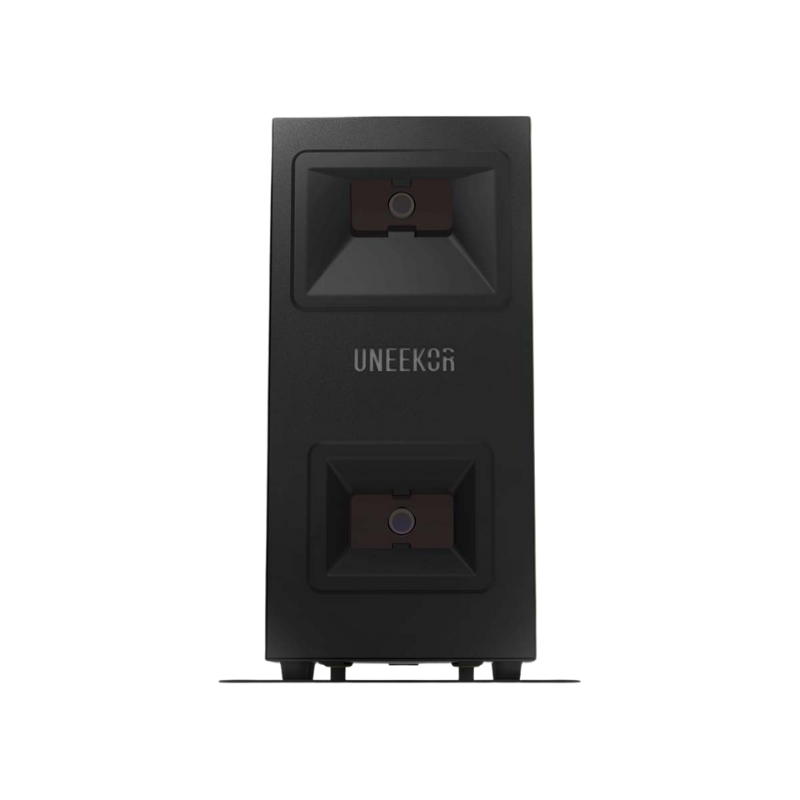

EYE MINI LITE:
- Length: 3.8" (96mm)
- Width: 6.5" (165mm)
- Height: 13.9" (353mm)
- Weight: 8.4 lbs (3.814kg)
Projectors

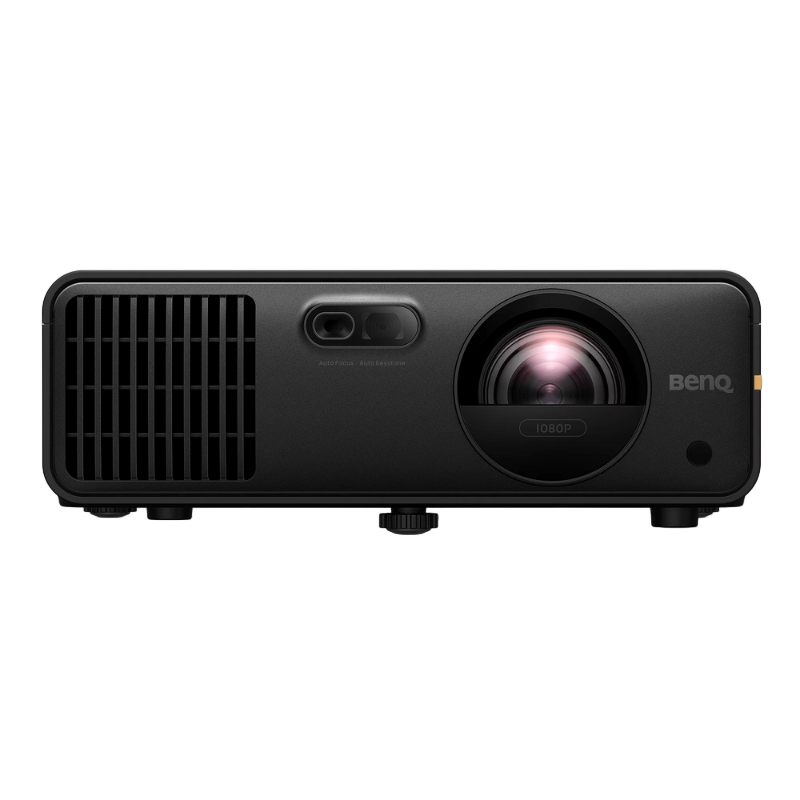

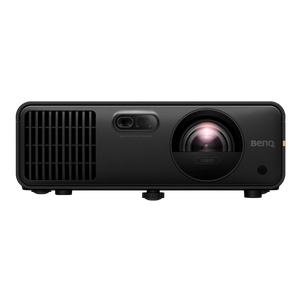

BenQ AH700ST:
- Brightness (ANSI lumens): 4000
- Native Resolution: 1080P (1920x1080)
- Native Aspect Ratio: 16:9
- Selectable Aspect Ratios: 16:9, 16:10, 4:3, 1:1
- Light Source: Laser
- Light Source Life: Normal: 20,000 hrs
- Throw Ratio: 0.69~0.83
- Zoom Ratio: 1.2x

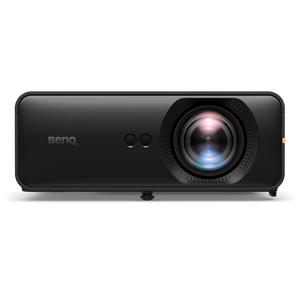

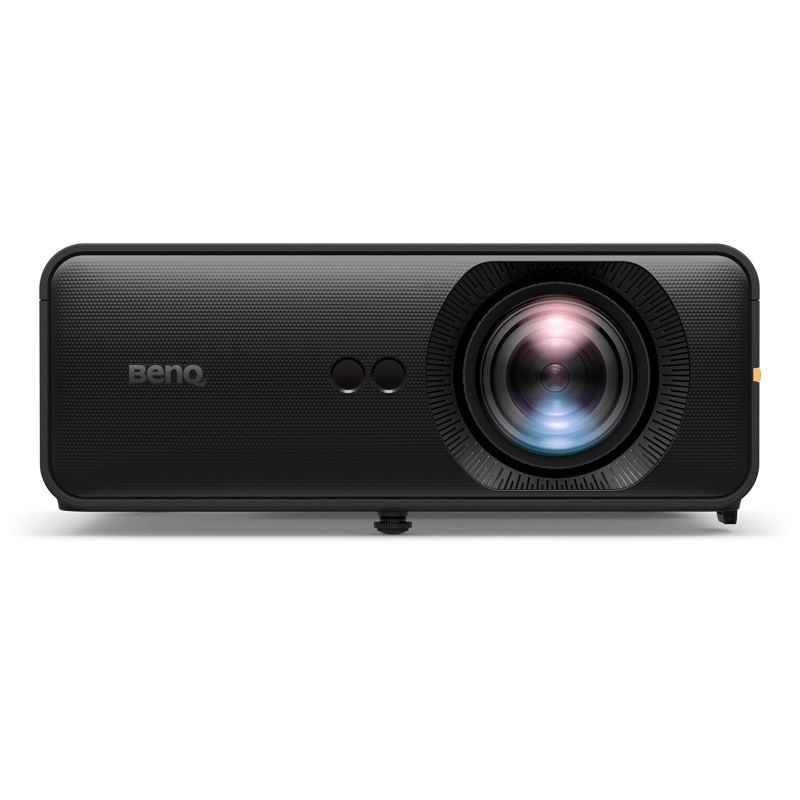

BenQ AH500ST:
- Brightness (ANSI lumens): 4000
- Resolution: 1080P (1920×1080)
- Native Aspect Ratio: 16:9
- Selectable Aspect Ratios: 16:9, 16:10, 4:3, 1:1
- Contrast Ratio (FOFO): 3,000,000:1
- Display Color: 30-bit (1.07 billion colors)
- Light Source: Laser
- Light Source Life: Normal: 20,000 hrs, ECO: 38,000 hrs
- Throw Ratio: 0.499
- Zoom Ratio: Fixed

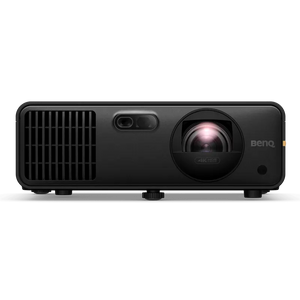

BenQ AK700ST:
- Brightness (ANSI lumens): 4000
- Resolution: 4K UHD (3840 × 2160)
- Native Aspect Ratio: 16:9
-
Selectable Aspect Ratios: 16:9, 16:10, 4:3
- Contrast Ratio (FOFO): 3,000,000:1
- Display Color: 30-bit (1.07 billion colors)
- Light Source: Laser
- Light Source Life: 20,000 hrs
- Throw Ratio: 0.69-0.83
- Zoom Ratio: 1.2x

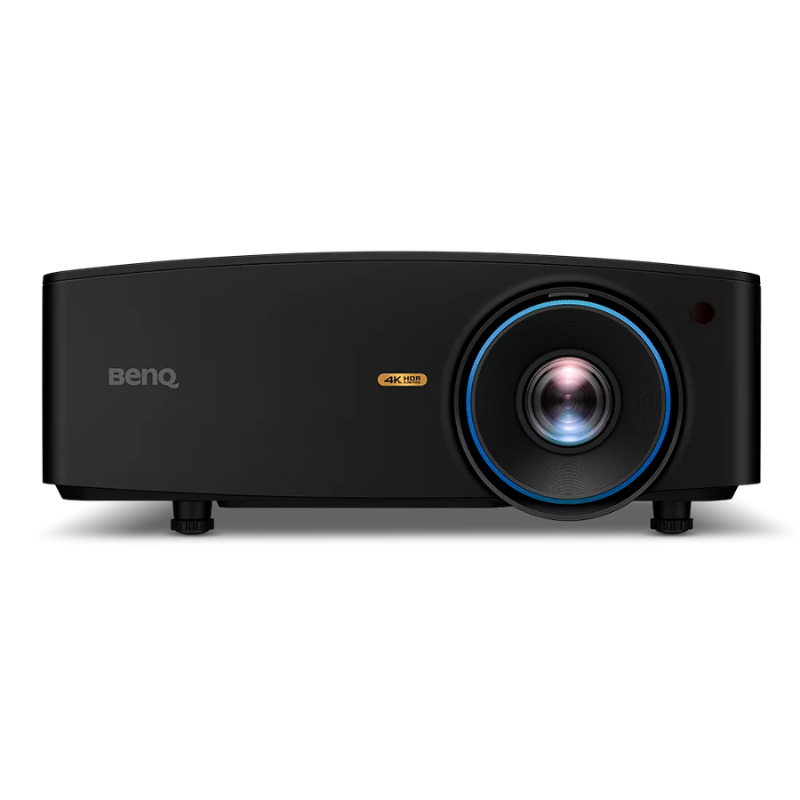

BenQ LK936ST:
- Brightness (ANSI lumens): 5100
- Native Resolution: 4K UHD (3840×2160)
- Native Aspect Ratio: 16:9
- Selectable Aspect Ratios: 16:9, 16:10, 4:3, 2.4:1
- Contrast Ratio (FOFO): 3,000,000:1
- Display Color: 30-bit (1.07 billion colors)
- Light Source: Laser
- Light Source Life: Normal: 20,000 hrs
- Throw Ratio: 0.81~0.89
- Zoom Ratio: 1.1x

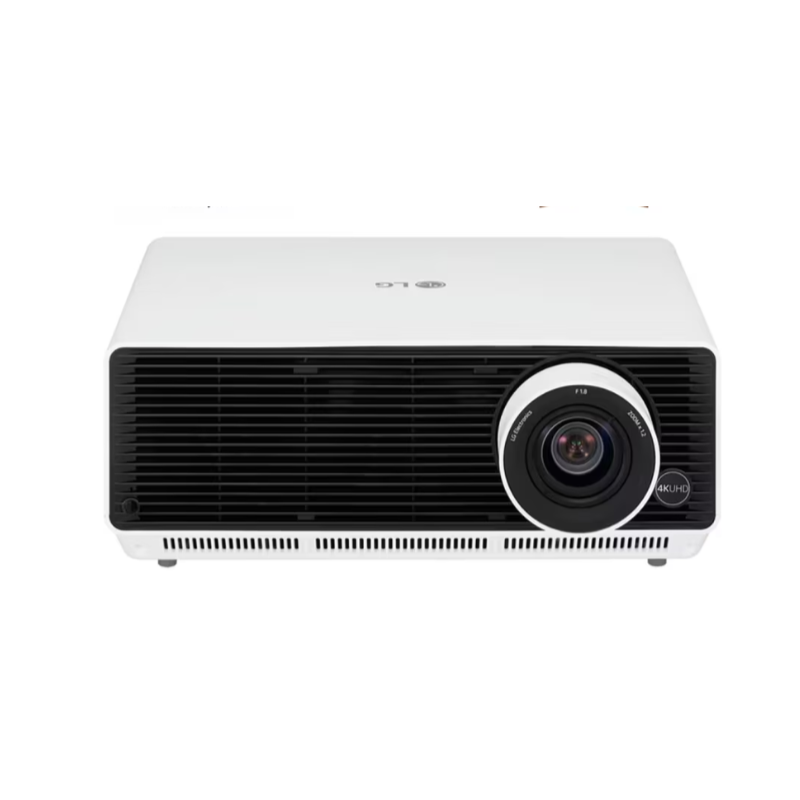

LG ProBeam BU53RG:
- Resolution: 4K UHD (3840 x 2160)
- Brightness: 5000 ANSI Lumens
- Aspect Ratio Support: 4:3, 16:6, 16:9, 16:10, 21:9
- Throw Distance: Short Throw
- Throw Ratio: 0.94 ‐ 1.14
- Light Source: Laser (up to 20,000 hours)
- Contrast Ratio: 3,000,000:1
- Zoom: 1.2x
- Digital Image Adjustment: Advanced Edge Adjustment & Warping (4, 9, 15, 25 pt), Image Rotation (H/V)
- Screen Size: 40" ~ 300"
- Lens Shift: Horizontal ± 20%, Vertical ± 50%
- HDR: Yes
- Noise: 29dB to 33dB
Computers

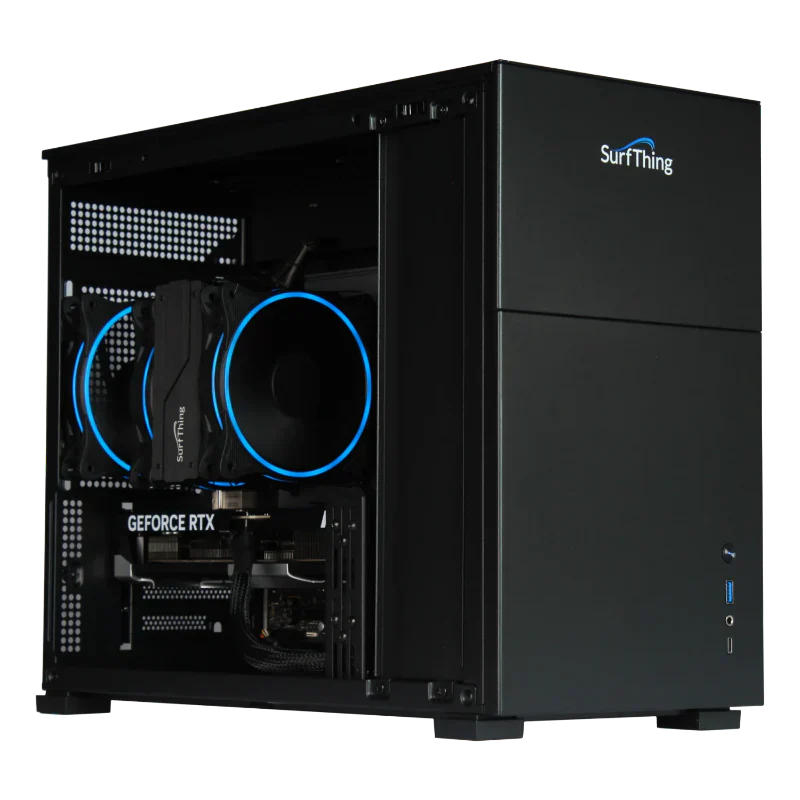

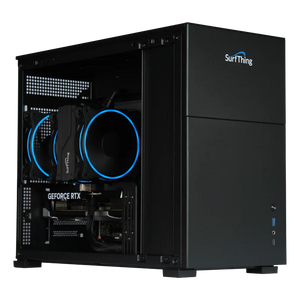

SurfThing SG3-5602
- Processor: Intel Core Ultra 5 225F
- CPU Cooling: Dual Fan 120MM Air Cooler
- Graphics Card: RTX 5060 8GB GDDR7
- Memory: 16GB DDR5 4800MHz
- Storage: 1TB NVMe Gen4 SSD
- Connectivity: Bluetooth 5.3, WiFi 6E
- Operating System: Windows 11 Home
- Case Dimensions: 8.07"W x 14.29"H x 17.8"D
- Rear Ports: 1x USB Type-C With Thunderbolt 4, 6x USB 3.2 Gen 1 (2 With Ultra USB Power), 6x USB 2.0, 1x 2.5G LAN, 2x WiFi Antennas, 1x Optical S/PDIF Out Connector, 2x Audio Jacks
- Front Ports: 1x USB 3.2 Gen 1 5Gbps (Type-C), 1x USB 3.2 Gen 1 5Gbps (Type-A), 1x HD Audio Combo (CTIA – SPK/Mic)
SurfThing SG3-5702
- Processor: Ultra 5 225F
- Cooling: Dual Fan 120MM Air Cooler
- Graphics Card: RTX 5070 12GB GDDR7
- Memory: 32GB DDR5 6000MHz
- Storage: 2TB NVMe Gen4 SSD
- Operating System: Windows 11 Home
- Wireless: Bluetooth 5.3, WiFi 6E
- Rear I/O: 1x USB-C (Thunderbolt), 6x USB 3.2 Gen 1, 6x USB 2.0, 1x 2.5G LAN, 2x WiFi Antennas, 1x Optical S/PDIF, 2x Audio Jacks
- Front I/O: 1x USB 3.2 Gen 1 Type-C, 1x USB 3.2 Gen 1 Type-A, 1x HD Audio Combo (CTIA – SPK/Mic)
- Case Dimensions: 8.07" (W) x 14.29" (H) x 17.8" (D)
- Build Time: 3–5 business days (Built to Order)
SurfThing SG3-5702Ti
- Processor: Ultra 5 225F
- Cooling: Dual Fan 120MM Air Cooler
- Graphics Card: RTX 5070 Ti 16GB GDDR7
- Memory: 32GB DDR5 6000MHz
- Storage: 2TB NVMe Gen4 SSD
- Operating System: Windows 11 Home
- Wireless: Bluetooth 5.3, WiFi 6E
- Rear I/O: 1x USB-C (Thunderbolt), 6x USB 3.2 Gen 1, 6x USB 2.0, 1x 2.5G LAN, 2x WiFi Antennas, 1x Optical S/PDIF, 2x Audio Jacks
- Front I/O: 1x USB 3.2 Gen 1 Type-C, 1x USB 3.2 Gen 1 Type-A, 1x HD Audio Combo (CTIA – SPK/Mic)
- Case Dimensions: 8.07" (W) x 14.29" (H) x 17.8" (D)
- Build Time: 3–5 business days (Built to Order)
SurfThing SG3-5802
- Processor: Ultra 7 265F
- Cooling: 280MM AIO ARGB Liquid Cooler
- Graphics Card: RTX 5080 16GB GDDR7
- Memory: 32GB DDR5 6000MHz
- Storage: 2TB NVMe Gen4 SSD
- Operating System: Windows 11 Home
- Wireless: Bluetooth 5.3, WiFi 6E
- Rear I/O: 1x USB-C (Thunderbolt), 6x USB 3.2 Gen 1, 6x USB 2.0, 1x 2.5G LAN, 2x WiFi Antennas, 1x Optical S/PDIF, 2x Audio Jacks
- Front I/O: 1x USB 3.2 Gen 1 Type-C, 1x USB 3.2 Gen 1 Type-A, 1x HD Audio Combo (CTIA – SPK/Mic)
- Case Dimensions: 8.07" (W) x 14.29" (H) x 17.8" (D)
- Build Time: 3–5 business days (Built to Order)

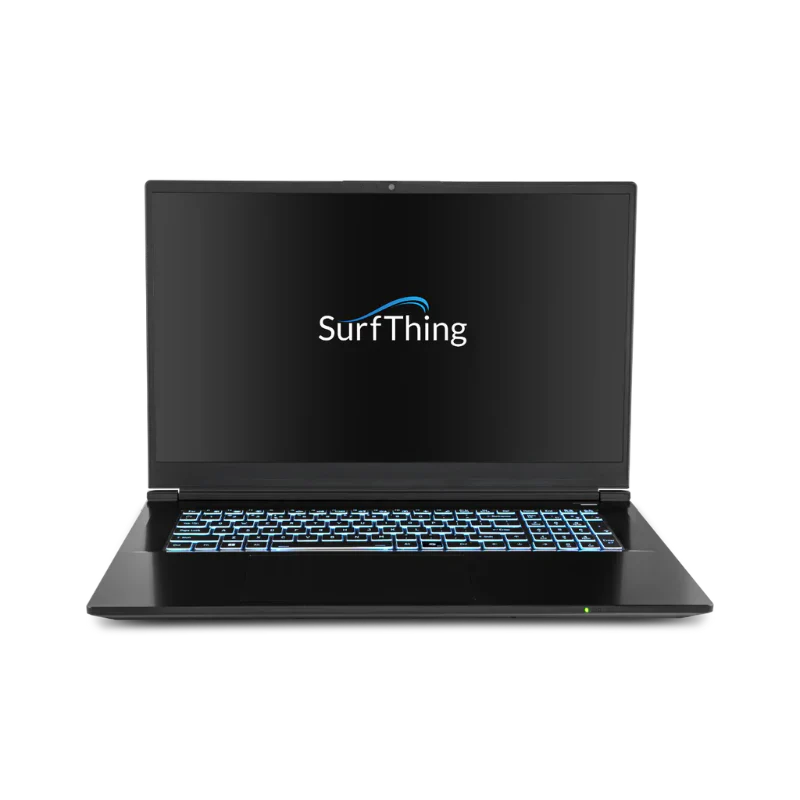

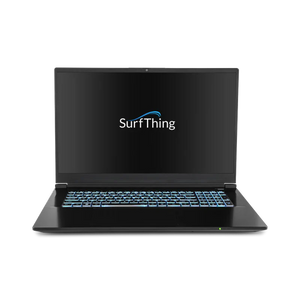

SurfThing M3H Laptop
- Processor: Intel Core Ultra 9 Processor 275HX (2.7 GHz, up to 5.4 GHz Turbo Frequency), 24 Cores, 36MB L3 Cache
- Display: 17.3” Full HD (1920x1080) 144Hz, Wide View Angle, 72% NTSC, Matte Finished
- Memory: 32GB DDR5 5600MHz
- Graphics Card: NVIDIA GeForce RTX 5070 Laptop GPU 8GB GDDR7 Video RAM
- Storage: 2TB NVMe SSD
- Wireless Communication: Intel Wireless Wi-Fi 7 BE200 + Bluetooth
- Camera: Built-in 1.0M HD Video Camera
- Operating System: Windows 11 Home
FAQ
Q: What is included with the Uneekor EYE MINI LITE Launch Monitor Projector Golf Simulator Computer Package?
A:
Uneekor EYE MINI LITE Launch Monitor, 3 Month Ultimate Package Trial, choice of projector, and choice of computer.
Q: Where and how should I mount my projector?
A: Projector placement depends on your viewable screen dimensions and the throw ratio of your projector. Feel free to reach out to our team so we can provide you with the exact mounting location based upon the enclosure size and projector that you choose. Common mounting options include flush or drop mounts.
Q: How do I choose the right golf simulator computer?
A: Choose your computer based on resolution and performance needs. The SurfThing SG3-5602 is best for 1080p setups, while the SG3-5702 supports entry-level 4K. For smoother performance and higher graphics settings, the SG3-5702Ti or SG3-5802 are recommended. The SurfThing M3H Laptop is a good option for portable or space-conscious setups.
Q: What are the differences between the golf simulator computers?
A: The SG3-5602 is designed for 1080p simulation, the SG3-5702 adds entry-level 4K capability, and the SG3-5702Ti and SG3-5802 deliver stronger graphics performance for premium 4K simulation. The SurfThing M3H Laptop offers similar functionality in a portable format.
Q: What are the differences between the golf simulator projectors?
A: The BenQ AH700ST and AK700ST are short-throw projectors, with the AK700ST offering 4K resolution. The BenQ AH500ST is ultra-short throw for compact spaces. The BenQ LK936ST and LG ProBeam BU53RG are premium short-throw laser-based 4K projectors with the highest brightness and image quality.
