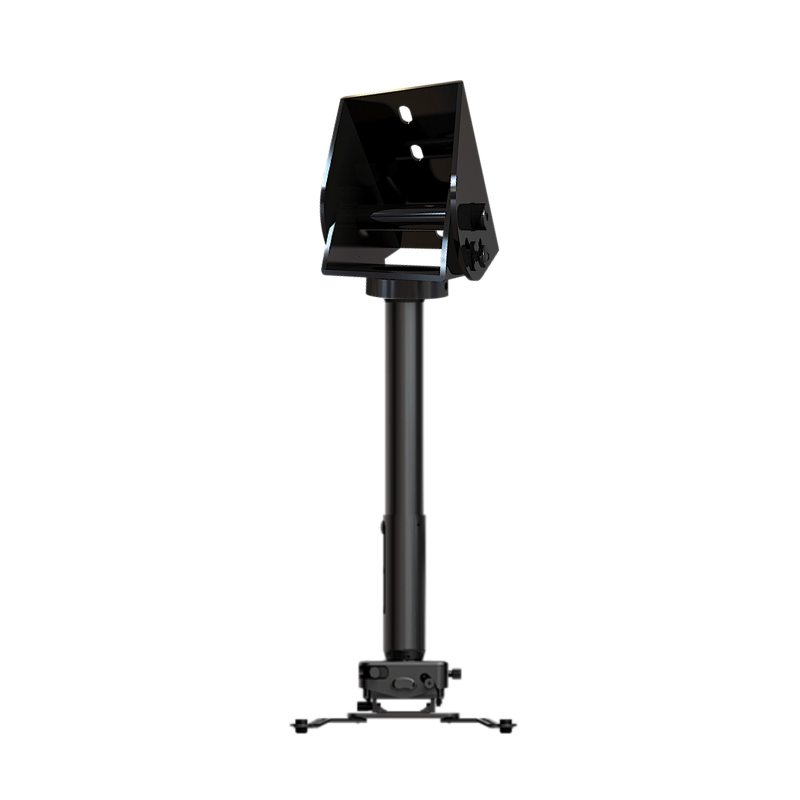

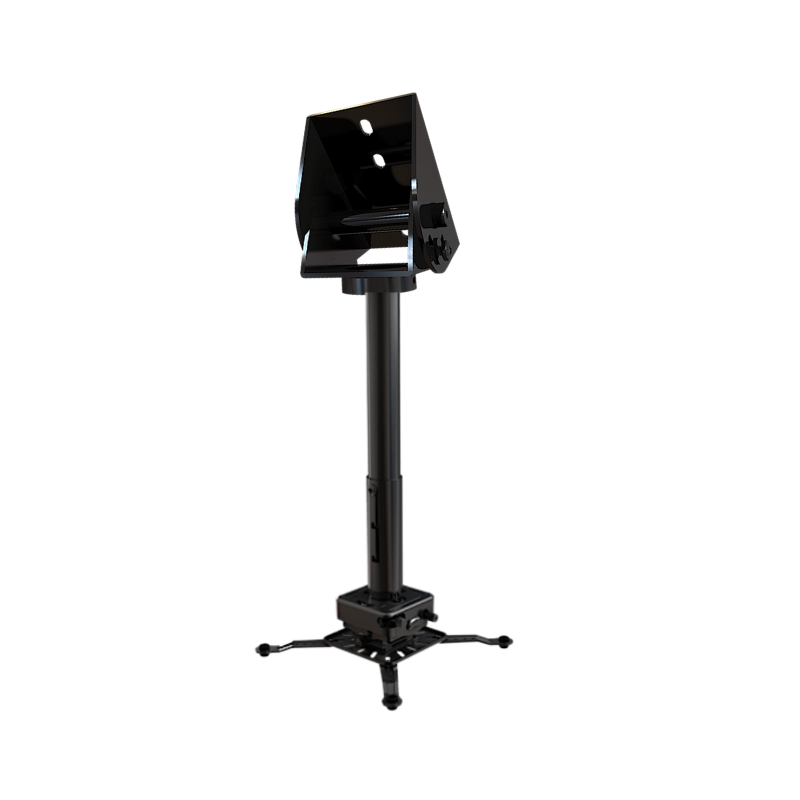

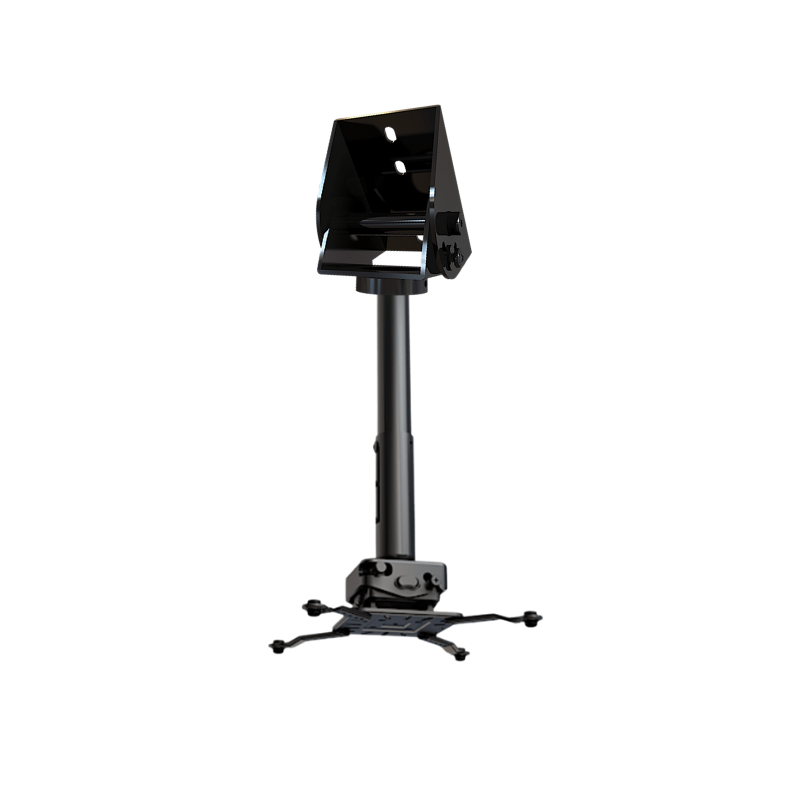

The Projector Vaulted Ceiling Mount with Extension Bar is purpose-built for secure, adjustable installation on angled or vaulted ceilings. Designed for both commercial and residential use, this complete mounting solution includes a JR3 universal adapter and offers nine versatile drop length options: 6"-11", 12"-18", 18"-24", 2'-3', 2'-4', 3'-5', 4'-6', 6'-8', and 8'-10'.
Engineered for ease and precision, the vaulted mount features a pre-assembled interface and an adjustable ceiling plate that accommodates sloped surfaces. Integrated roll, pitch, and yaw controls ensure accurate projector alignment, even in complex ceiling environments. A quick release mechanism and 1" incremental height adjustment simplify future access and modifications.
A through-column cable routing system keeps wiring out of sight for a clean, professional look. With included security hardware at all connection points and a pre-sorted hardware pack, this mount delivers both reliable performance and efficient installation. It is fully compatible with 1.5" NPT threaded pipe systems.
What's Included:
Vaulted Ceiling Compatibility
Designed specifically for angled ceilings with an adjustable ceiling plate that adapts to sloped surfaces for a secure and level projector installation.

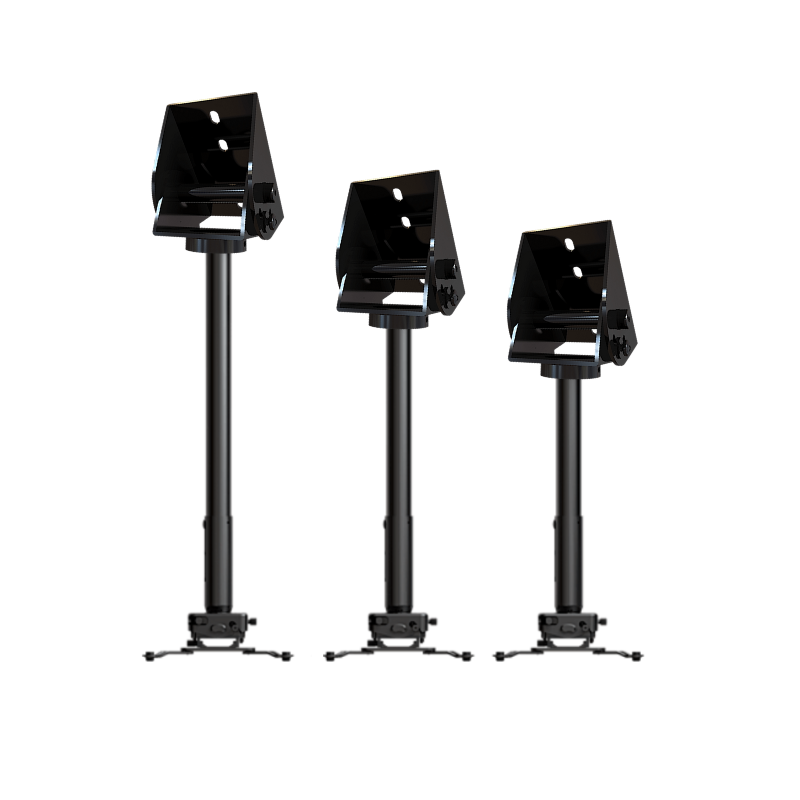

Flexible Drop Length Options
Nine drop lengths from 6" to 10' offer custom installation flexibility for different ceiling heights and projector throw distances.
All-Point Security
Includes tamper-resistant hardware for each connection point to ensure a secure, locked-in installation.
Precision Adjustment
Built-in roll (±8°), pitch (±15°), and full 360° yaw adjustment enables precise image positioning after mounting.
Tool-Free Quick Release
The quick release mechanism allows easy removal of the projector for service or replacement without disassembling the mount.
Internal Cable Management
Through-column routing hides cables inside the extension pipe for a clean, professional appearance.
Pre-Sorted Hardware Kit
Clearly labeled and sorted hardware simplifies the installation process, saving time and effort.
Included with Your Purchase:
Q: Can this mount be used on vaulted or angled ceilings?
A: Yes, it includes an angled ceiling adapter plate designed to mount securely on vaulted or sloped surfaces.
Q: Is it compatible with most projectors?

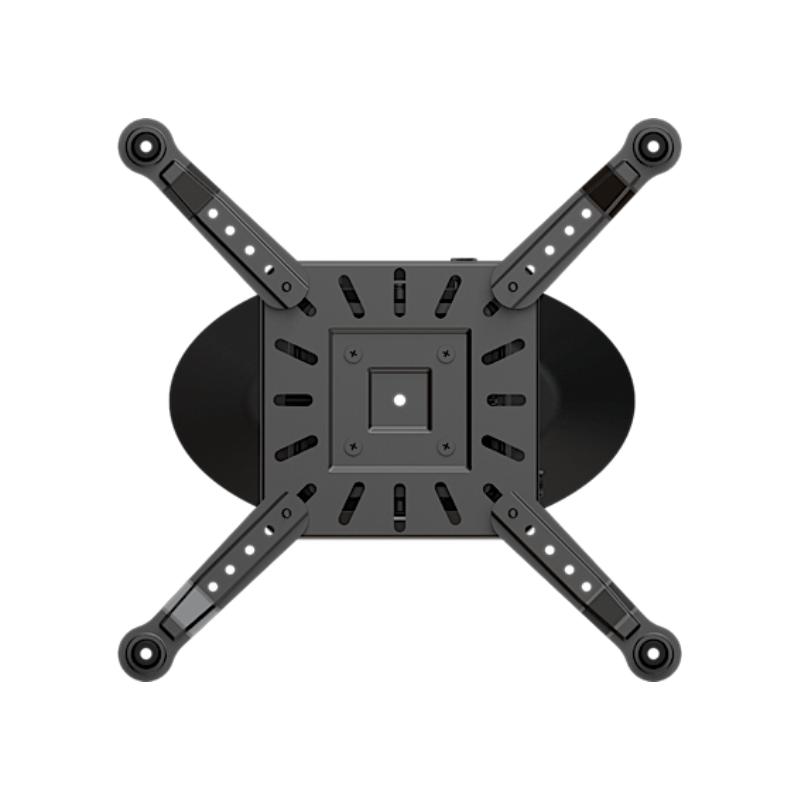

A: Yes, the JR3 universal adapter supports a wide range of projector mounting patterns.
Q: Can I make adjustments after the projector is installed?
A: Absolutely. The mount provides full roll, pitch, and yaw adjustability after installation.
Q: How do I select the right drop length for a vaulted ceiling?
A: Consider both your ceiling angle and the desired projector lens height. Choose the drop length that aligns the lens with the top edge of your impact screen.
